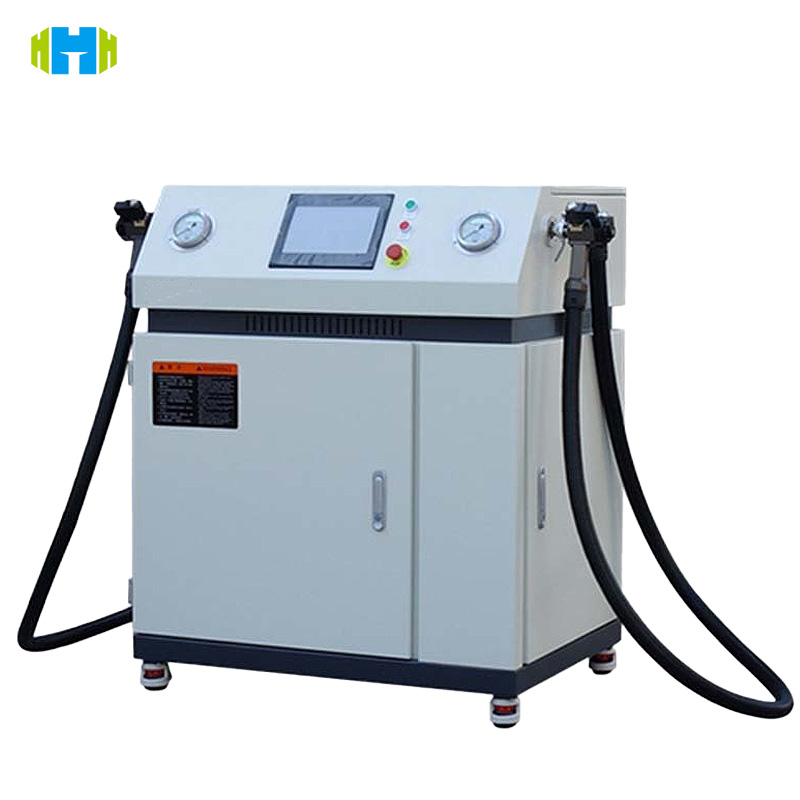

The dual-charging gun dual-system refrigerant filling machine is ingeniously designed for refrigeration equipment production lines, integrating dual-gun independent charging, explosion-proof safety technology and intelligent data management.
Brand :
HONGCEModel :
HC-RCM001-ACertificate :
Calibration certificate(cost additional)Product Origin :
ChinaPayment Method :
L/C, T/TRegular Packaging :
PlywoodDual charging gun dual system refrigerant filling machine High accuracy ±0.5g Comply with EN 378 & ISO 5149 standards
Product introduction:
The dual-charging gun dual-system refrigerant filling machine is equipped with a dual-way filling system. The dual system can realize online filling of dual refrigerants to meet the needs of mixed-line production. The recycling system can be selected, and the switching of multiple refrigerants is more convenient. Whether it is a refrigerator, air conditioner or commercial refrigeration system, it can help enterprises improve production efficiency and product consistency with humanized operation experience and stability, so that every filling is accurate and reliable, and protect your quality commitment.
Product features:
1. Intelligent function linear algorithm to ensure that each filling point is accurate
2. All-weather full-range accuracy, no need for daily calibration
3. -10℃-50℃ temperature test laboratory to ensure stability
4. Explosion-proof vacuum pump
5. Standard leakage alarm
6. Precision wind pressure detection and ventilation system to improve safety
International reference standards:
EN 378-1:2016: Safety and environmental requirements for refrigeration systems (explosion-proof design and refrigerant leakage control).
ISO 5149:2014: Refrigeration compressor and heat pump performance test standard (charging accuracy and pressure stability).
UL 60335-2-40: Safety specifications for household and similar electrical appliances (electrical isolation and compatibility with flammable refrigerants).
Technical parameters:
| Project | Parameters |
| Model | HC-RCM001-A |
| Charging gas | R134a、R513a、R404A、R406A、R22 |
| System form | Double charging system |
| Charging dose (g) | 10-999 |
| Charging speed (g/s) | ≥40 |
| Charging precision | Within 100g ≤±0.5g Above 100g ≤±0.5% |
| Compressed Air | 0.5-0.7Mpa dry compressed air |
| Voltage & Power | AC380V 50Hz 0.75kW |
Product use:
Applicable scenarios: refrigerators, air conditioners, commercial freezers, automotive air conditioners, heat pumps and other refrigeration equipment production lines.
Test objects: compressors, condensers, evaporators, refrigeration pipeline systems.
Test items:
Vacuum degree (≤5Pa) and leakage rate detection16.
Precise control of refrigerant filling volume (20-99,999g) and filling speed (60-200g/s).
Verification of pressure stability (1.4-3.5MPa) and temperature adaptability (-10℃~50℃).

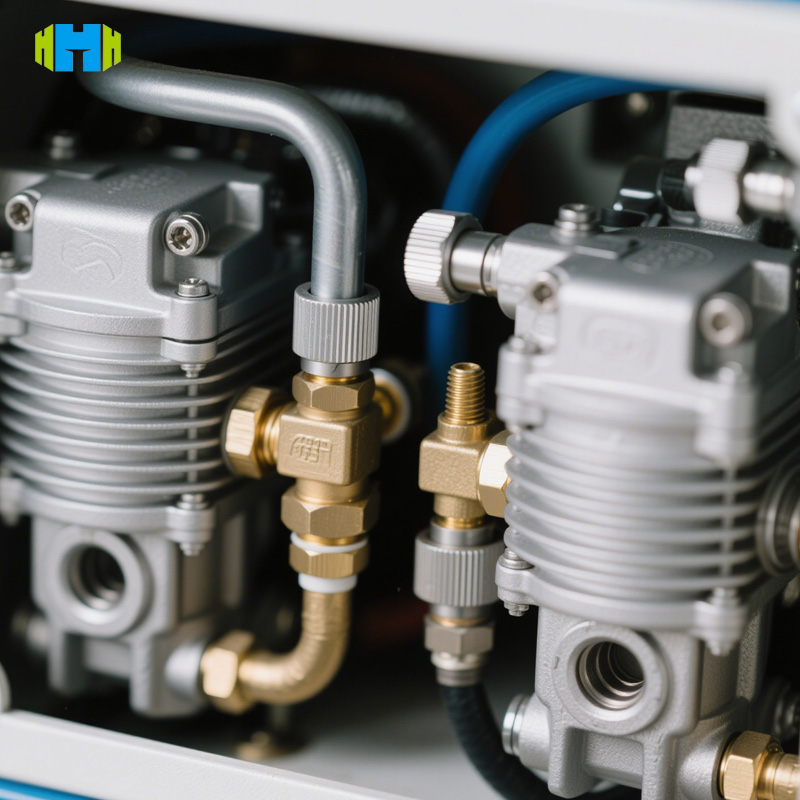

Detail pictures:
The dual-charging gun dual-system refrigerant filling machine is ingeniously designed for refrigeration equipment production lines, integrating dual-gun independent charging, explosion-proof safety technology and intelligent data management.
Details
High-speed dual-charging gun dual-system refrigerant filling machine is designed for efficient and accurate refrigeration equipment production lines. It supports dual refrigerant synchronous standby, one-button switching of common refrigerants such as R134a, R410A, R32, etc., with a filling speed of up to 200g/s and an accuracy of ±0.5g, meeting the high-standard production requirements of refrigerators, air conditioners, and commercial refrigeration equipment.
Details
HC-RCM003 is designed for automotive air conditioning, commercial refrigeration systems and industrial cold chain equipment. It adopts fully automatic operation and supports 20+ refrigerant types such as R134a, R410A, R22, etc. The charging accuracy is up to ±0.5g
