The handheld water-proof and splash-proof test device is designed to provide accurate waterproof performance verification for electrical and electronic equipment, automotive parts and outdoor equipment.
Brand :
HONGCEModel :
HH0804Certificate :
Calibration certificate(cost additional)Product Origin :
ChinaPayment Method :
L/C, T/TRegular Packaging :
PlywoodHandheld Waterproof and Splashproof Tester HH0804-1 IPX5/IPX6 Grade Waterproof Testing Equipment Portable IP Testing Equipment
International reference standards:
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX5 and IPX6, IEC60884-1, IEC60335-1, IEC60598-1.
Product introduction:

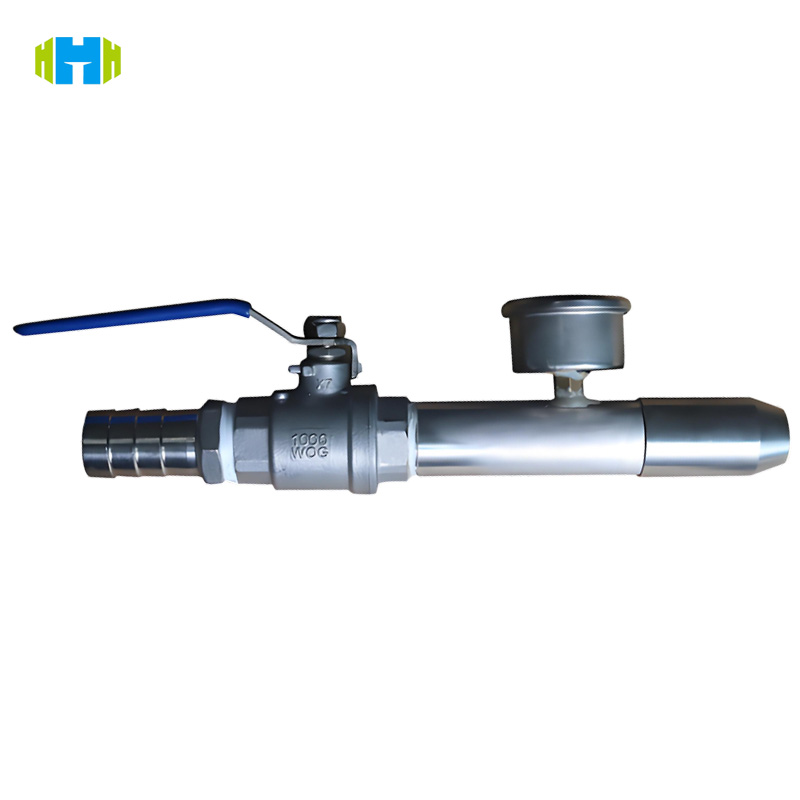

HH0804-1 handheld water-proof and splash-proof test device is your trustworthy "waterproof guardian". Whether it is the sealing verification of electronic components or the waterproof performance testing of automotive instruments, this device can complete the task with high precision and high efficiency.
Product Features:
Precise simulation: covers IPX5 (water spray) and IPX6 (splashing) test requirements, and the water spray angle is adjustable from 0-45°.
Flexible and portable: handheld design, with a 3-meter water pipe, suitable for laboratories, production lines and outdoor scenes.
Durable and reliable: 304 stainless steel body + brass nozzle, corrosion-resistant, high-pressure resistant, and long service life.
Intelligent control: digital pressure gauge monitors water pressure (50-150kPa) and flow (10L/min±5%) in real time to ensure test consistency.
International compatibility: complies with global mainstream standards such as IEC60529, GB4208, GB/T4942, and supports export certification requirements.
Technical Parameters:
| Model | HH0804-1 | HH0804-2 |
| Item | IPX5 | IPX6 |
| The nozzle diameter | Ф6.3mm | Ф12.5mm |
| Water flow | 12.5±0.625L/min,Flow meter is adjustable | 100±5 L/min,Flow meter is adjustable |
| The distance from jet nozzle to enclosure | 2.5~3m | |
| Testing time | Not less than 1min/m²(not less than 3 mins) | |
| Pressure gauge | 0~0.25MPa | |
| Site requirements |
Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation |
|
| Water supply |
Water flow rate ＞ 12.5L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment |
Water flow rate ＞100L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment |
Product Use:
HH0804-1 Handheld Splash and Shower Tester is widely used in electronics, electrical appliances, lamps, communications equipment, automotive parts, medical devices and other industries. It is suitable for testing the splash and shower performance of product shells, interfaces, seals and other parts to ensure that the product can work normally in humid and rainy environments, and improve the quality and reliability of the product.
Product Structure Diagram:
