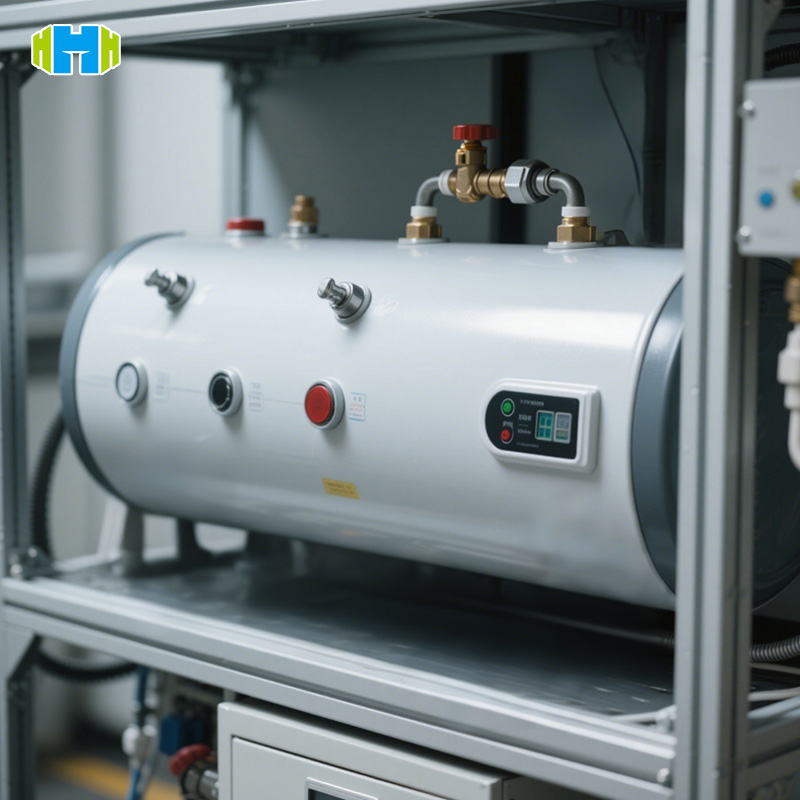

The Storage Type Electric Water Heater Performance Testing Equipment (Assembly Line Exclusive) is mainly used for sampling inspection or production line testing of water heater products in the production line, and factory inspection of water heaters, mainly for those below 40KW.
Brand :
HONGCEModel :
HH-CR-506Certificate :
Calibration certificate(cost additional)Product Origin :
ChinaPayment Method :
T/T,L/CRegular Packaging :
PlywoodStorage Type Electric Water Heater Performance Testing Equipment (Assembly Line Exclusive)
Characteristics
Production Line Oriented: Specifically designed for testing on the production line, ensuring efficient quality control during manufacturing.
Touch Screen Control: Equipped with a touch screen for convenient control and parameter setting, enhancing user experience and operational efficiency.
International reference standards
GB/T20289-2006: Performance test methods for storage-type electric water heaters (Chapter 5: Heating performance; Chapter 6: Thermal insulation performance)
GB 4706.12-2006: Special safety requirements for storage-type electric water heaters (Chapter 18: Withstand voltage test; Chapter 22: Grounding continuity)
IEC 60335-2-21: Safety specifications for household appliances (Chapter 11: Temperature rise test; Chapter 16: Insulation resistance)
EN 620:2002+A1:2010: Electromagnetic compatibility (EMC) test requirements for electric water heaters
Main Performance
Comprehensive Testing: Covers multiple aspects such as power, water pressure, flow, and temperature, providing a comprehensive evaluation of the water heater's performance.
Leakage Protection: Equipped with a leakage protection function, enhancing the safety of the testing process and the end product.
Technical parameters:
| Parameters | Specifications |
| Number of workstations | 2-10 workstations (customizable), each workstation is independently monitored |
| Water supply | pipeline Dual pipeline design (tap water + boost pipeline), stainless steel 304 material |
| Temperature range | 5-85℃, accuracy ±0.1℃ |
| Pressure adjustment | 0-0.7MPa, minimum scale 0.01MPa |
| Flow range | 0.1-100L/min, error ≤1% |
| Power input | 220V/30KVA, optional variable frequency power supply |
| Data acquisition | Supports simultaneous recording of 10+ parameters such as power, voltage, current, water temperature, etc. |
| Temperature | 0-40℃, humidity ≤80% |
Test objects and test items
Test objects:
Wall-mounted, vertical, floor-standing storage electric water heaters
Test items:
Performance test: heating efficiency, insulation energy consumption, flow stability.
Safety test: pressure resistance, grounding continuity, insulation resistance.
Life test: valve durability, heating pipe corrosion resistance.
Energy efficiency rating: 24-hour inherent energy consumption coefficient (ε value).
