This equipment is designed based on the standard IEC60335-2-2 Household and similar electrical appliances – Safety – Part 2-2: Particular requirements for vacuum cleaners and water-suction cleaning appliances clause 21.101. Its main purpose is to test the crushing resistance of current-carrying hoses.
Brand :
hejinModel :
HJ0614Product Origin :
ChinaPayment Method :
T/TRegular Packaging :

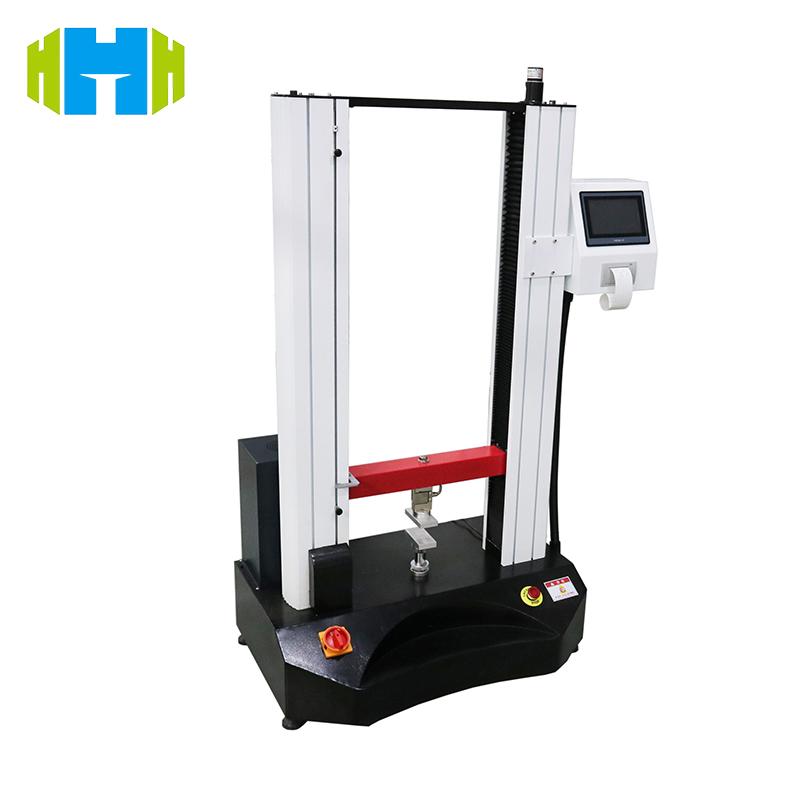

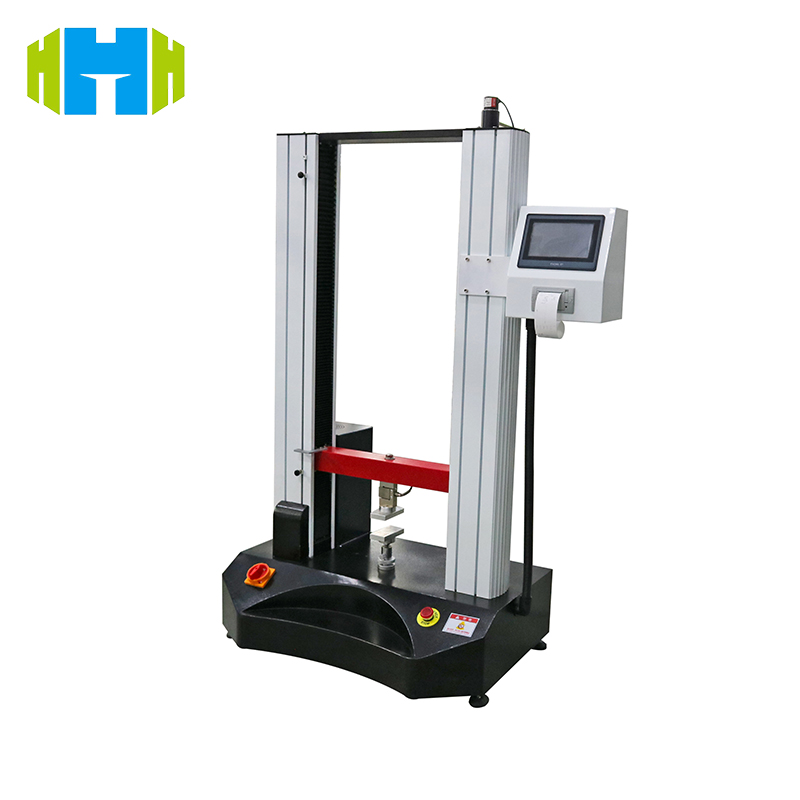

plywoodHome Appliance Testing Equipment Current-Carrying Hoses Crushing Resistance Test
Standard of Home Appliance Testing Equipment:
IEC60335-2-2 Household and similar electrical appliances – Safety – Part 2-2: Particular requirements for vacuum cleaners and water-suction cleaning appliances clause 21.101
Purpose of Home Appliance Testing Equipment:
It is used to test whether the Current-carrying hoses is resistant to crushing.
Feature of Home Appliance Testing Equipment
During the test, the current carrying hose is placed between the upper and lower pressure plates of the equipment (length and width 100X50m, long side rounded), the hose axis is at a right Angle to the long side of the pressure plate, and one end is about 350m from the edge of the pressure plate. After starting the equipment, the upper pressure plate squeezes the current carrying hose at a speed of 505mm/min until the pressure reaches 1.5kN, and then releases the pressure. Then the hose is tested for electrical strength.
Technical Parameters:
| NO. | Project | Parameter |
| 1 | Power supply | 220V,50Hz |
| 2 | Extrusion force | 1.5KN |
| 3 | Pressure speed | 50±5mm/min |
| 4 | Pressure plate specification | Length 100mm, width 50mm, long side rounded R1mm |
| 5 | Sample placement | at a right Angle to the long side, 350mm away |
| 6 | Pressure mode | electric type |
| 7 | Size | 1000x500x1500mm |
| 8 | Weight | 200kg |
Company Advantages
Product Development: The company has its own R & D and design team, providing customers with technological and innovative products and unique designs based on customer ideas.
Technical Support: All workers are experienced and skilled.
After-sale Service: The working and sales teams ensure fast and efficient global after-sale service.
Company Profile
Establishment and Location: Established in 2003 in Guangdong, China, it is a pioneering enterprise in the inspection equipment industry.
Production Process and Quality Control: Incorporates advanced technologies and equipment, with a strict quality control system covering all production stages.
Team and Management: Comprises skilled high-tech managers using modern management practices, computer-aided design, and control to ensure products meet international standards.
Business Model: Integrates R & D design, production, and sales.
Product Range: Specializes in manufacturing a wide variety of testing equipment, including flammability, battery, home appliance, helium leak, cable, IP, general, and non-standard testing equipment. The products are widely recognized and popular both domestically and internationally, with strong partnerships with many renowned companies.
