The glow wire tester uses simulation technology to assess the fire hazard caused by thermal stress in a short period of time due to heat sources such as glowing components or overload resistors.
Brand :
HONGCEModel :
GW-1Certificate :
Calibration certificate(cost additional)Product Origin :
ChinaPayment Method :
L/C, T/TRegular Packaging :
PlywoodGW-1 Button Glow Wire Tester TUV Box Intelligent Fire Test Equipment Comply with IEC60695-2-10 Standard Material Fire Hazard Test Equipment
Product Introduction:
The glow wire tester uses simulation technology to evaluate the fire hazard caused by heat stress in a short period of time due to heat sources such as glowing components or overload resistors. It is suitable for electrical and electronic equipment and their components and parts, as well as solid electrical insulation materials or other solid combustible materials.
Product features:
The glow-wire tester heats the heating wire of specified material (>Ni77/Cr20) and shape to the test temperature (550℃～960℃) with a large current for 1 minute, and then vertically burns the test sample with a specified pressure (0.95N) for 30 seconds. The fire hazard of the finished electrical and electronic equipment is determined by whether the test sample and the bedding ignite or the burning time; the ignition property, ignition temperature (GWIT), flammability and flammability index (GWFI) of solid insulating materials and other solid combustible materials are determined. The depth of the glow-wire burning into the sample is controlled by a proximity solenoid valve switch. After the sample reaches the specified burning time, it automatically detaches from the glow-wire.
Standard:
IEC60695-2-10 Fire hazard testing – Part 2-10: Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure,
IEC60695-2-11 Fire hazard testing – Part 2-11 : Glowing/hot-wire based test methods – Glow-wire flammability test method for end-products,
IEC60695-2-12 Fire hazard testing – Part 2-12: Glowing/hot-wire based test methods – Glow-wire flammability index (GWFI) test method for materials,
IEC60695-2-13 Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods – Glow-wire ignitability test method for materials.
Technical Parameters:
| Test items | Reference parameters |
| ParametersModel | GW-1 |
| Working voltage | 220V/50Hz |
| Control operation mode | Electrical control, button operation |
| Glowing filament | Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) special standard ring shape, horizontal standing |
| Specimen pressure on glowing filament | 0.95N±0.1N |
| Maximum depth of heating | 7mm ± 0.5mm |
| Specimen movement speed | 10mm /s - 25mm /s |
| Temperature calibration | Calibration temperature:960°±10°C, the hot wire by electric heating |
| Thermocouple: RS imported 1mm armour nickel-chromium/nickel/ nickel aluminum K-Thermocouple, temperature resistance 1100° | |
| Silver foil: purity 99.8%, area :2m², thickness:0.06mm | |
| Tray | A layer of silk paper (12–30g/m³) is covered on the 10mm thick pine board, with a distance of 200±5mm below the test sample |
| Test chamber | >0.5 cube, sample distance from the inside of the box is greater than 100mm, black yogon background, background illuminance ≤ 20Lx,with exhaust fan |
| Testing time | 30s±1s |
| Test procedure | The test sample is driven by the car and automatic run, the car will return automatically after glow-wire entered the test sample of 7mm |
| Lighting | Equip with lighting in the test chamber, with control |
| Dimension | 1100*550*1200mm, 140kg |
Product use:
Test objects: switch housing, relay socket, insulation material, engineering plastics, household appliance components, wire and cable sheath, etc.
Test items:
1. Material ignition temperature (GWIT)
2. Flammability index (GWFI)
3. Flame spread time
4. Glow wire ignitability assessment
5. Flame retardant grade certification.

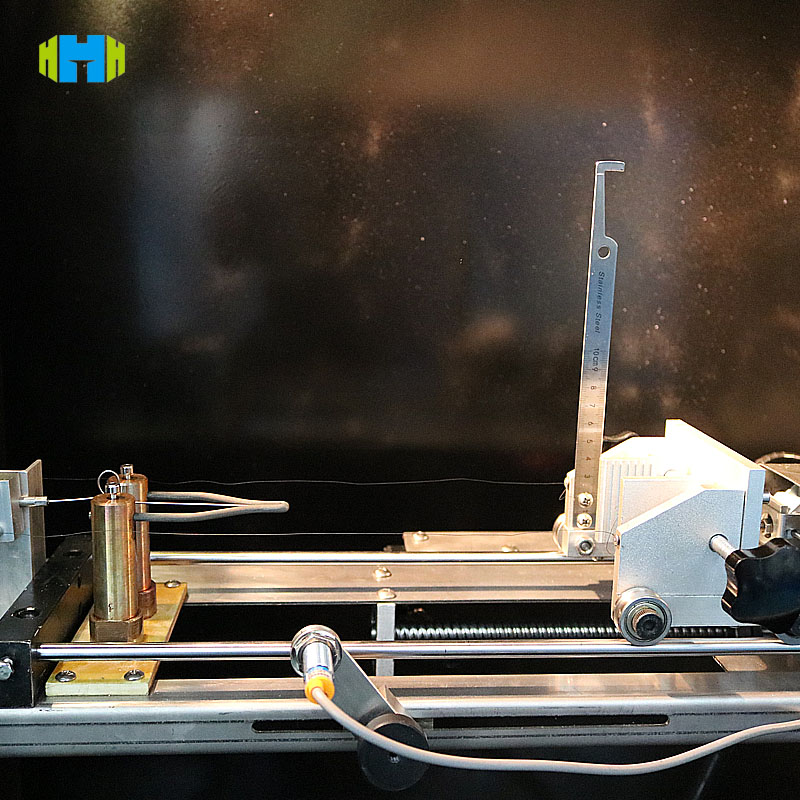

Detailed pictures:
