Source manufacturer Electric wall-mounted boiler performance test bench Accurate detection Supports multiple model testing

Source manufacturer Electric wall-mounted boiler performance test bench Accurate detection Supports multiple model testing

Product introduction:

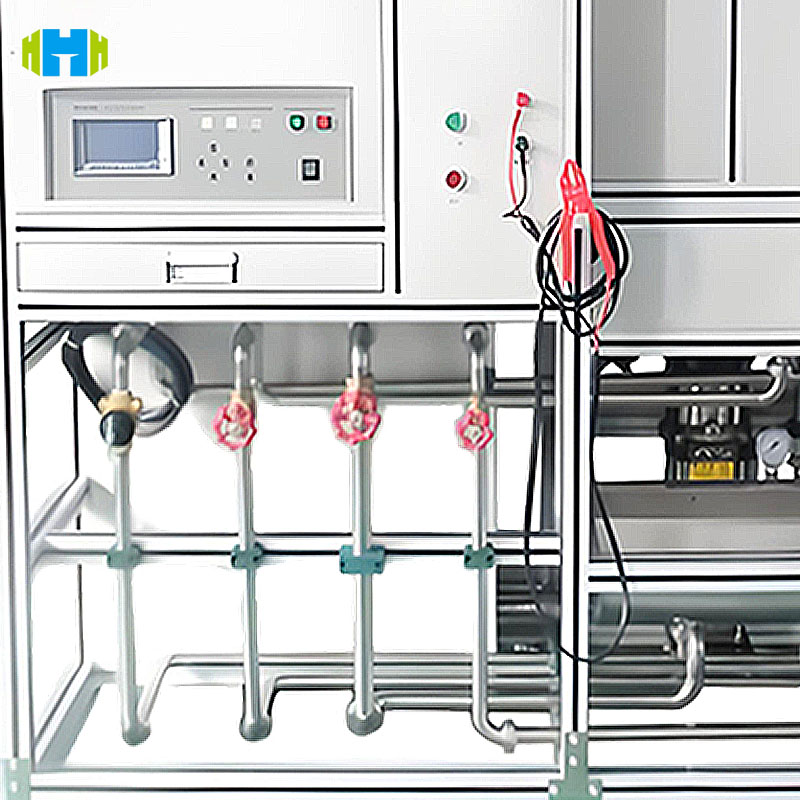

The electric wall-mounted boiler performance test bench is used to test the performance of the electric wall-mounted boiler under normal temperature. It adopts advanced PLC control, computer configuration display, real-time monitoring and detection.

Reference standards:

ISO 9001:2015 quality management system standard, to ensure that the design, production and service of the equipment meet international quality management requirements, and to ensure the quality stability and reliability of the equipment.

EN 62208:2002 Safety requirements for electric heating boilers and storage electric water heaters. The equipment strictly follows this standard during the design and manufacturing process to ensure the safety of the electric wall-mounted boiler during the test.

ASTM D 2868-19 Liquid fuel combustion equipment test method standard, used to standardize the equipment's test methods for related indicators such as the combustion performance of electric wall-mounted boilers, to ensure the accuracy and comparability of the test results.

IEC 60335-1:2020 General safety requirements for household and similar electrical appliances. The electrical safety performance of the equipment complies with this standard to ensure the electrical safety of the equipment during use.

GB/T 25034-2020 Safety requirements for electric heating appliances for household and similar purposes, combined with domestic standards, to ensure the safety and compliance of the equipment when used domestically.

Product features:

Supports data export and data recording functions, intelligent and reliable, easy to operate. The chassis adopts aluminum profile frame, stainless steel sheet metal, welded heat pipe, durable and beautiful.

Technical parameters:

What items can be tested?

Electrical performance test: including the measurement of parameters such as voltage, current, power, power factor, frequency, etc., to test the electrical safety and power utilization efficiency of the electric wall-mounted boiler.

Heating performance test: measure the heating power, heating rate, temperature uniformity and other indicators of the electric wall-mounted boiler to evaluate its heating capacity and performance stability.

Pressure performance test: test the pressure inside the electric wall-mounted boiler, including working pressure, pressure resistance, sealing performance, etc., to ensure the safety and reliability of the equipment under normal working pressure.

Flow performance test: detect the flow of circulating water, evaluate whether the water circulation system of the electric wall-mounted boiler is normal, and ensure that heat can be effectively transferred.

Efficiency test: calculate the thermal efficiency of the electric wall-mounted boiler and measure its ability to convert electrical energy into thermal energy. It is an important indicator for evaluating the energy-saving performance of the product.

Safety protection function test: test whether the safety protection functions such as overload protection, short circuit protection, overheating protection, and water shortage protection of the electric wall-mounted boiler are working normally, to ensure that the equipment can be shut down in time when an abnormal situation occurs, and avoid the occurrence of safety accidents.​

Noise detection: measure the noise level of the electric wall-mounted boiler during operation, evaluate its impact on the use environment, and ensure that the product meets the relevant standards for noise emission. ​

Insulation resistance detection: detect the insulation resistance of the electric wall-mounted boiler to determine whether its electrical insulation performance is good and prevent leakage accidents. ​

Grounding resistance detection: measure the grounding resistance of the equipment to ensure the effectiveness of the grounding system and the safety of the operator. ​

Withstand voltage test: conduct withstand voltage test on the electrical components of the electric wall-mounted boiler to detect its insulation performance and tolerance under high voltage environment. ​

Low-temperature starting performance test: test the starting performance of the electric wall-mounted boiler in a low-temperature environment to observe whether it can start normally and whether the various parameters during the startup process are stable. ​

High-temperature operation performance test: operate the electric wall-mounted boiler in a high-temperature environment to detect whether its various performance indicators are normal and evaluate the reliability and stability of the equipment in a high-temperature environment. ​

Long-term operation reliability test: observe the performance changes of the electric wall-mounted boiler through long-term continuous operation tests and evaluate its long-term operation reliability and durability.
