The air conditioner evaporator dust content test device uses intelligent detection technology to accurately quantify the impact of evaporator dust accumulation on performance, helping companies improve air conditioning energy efficiency and extend equipment life.
Brand :
HONGCEModel :
HC-ACPT002Certificate :
Calibration certificate(cost additional)Product Origin :
ChinaPayment Method :
L/C, T/TRegular Packaging :
PlywoodAir Conditioner Evaporator Dust Content Tester High Precision HVAC Components Testing Equipment 0.1μm~10μm Particle Analysis
Product Introduction
In air conditioning systems, dust accumulation on the evaporator is an invisible killer that causes reduced cooling efficiency, increased energy consumption, and even bacterial growth. HC-ACPT002 uses high-end technology developed by our company to monitor the particle concentration, particle size distribution, and dust accumulation rate on the evaporator surface and internal air duct in real time, and accurately evaluate the impact of dust accumulation on heat exchange efficiency.
Product use:
Air conditioner evaporator: Detect the heat transfer efficiency attenuation and energy consumption changes caused by dust accumulation.
Duct system: Evaluate the impact of particle deposition inside the duct on air flow resistance.
Air filter: Verify the dust holding capacity and pressure difference increase trend of the filter material after long-term use.
R&D and quality inspection: Provide compliance test data for HVAC component manufacturers to support product iteration.
Reference standards:
ISO 16890:2016 "Air filters - filtration performance of particulate pollutants"
ASHRAE 52.2-2017 "Test method for particle size classification efficiency of ventilation air purification equipment"
Technical parameters:
| Key Parameters | Specifications |
|---|---|
| Model | HC-ACPT002 |
| Detection Object | Air conditioning evaporators, condensers, filters, etc. |
| Dust Concentration Range | 0.1 μg/m³ – 10,000 μg/m³ (adjustable) |
| Dust Particle Size Range | 0.1 μm – 100 μm |
| Test Airflow Range | 0 – 5,000 m³/h (stepless adjustment) |
| Sensor Accuracy | Dust concentration: ±2% FS Particle size: ±5% |
| Power Supply | AC 220V ±10%, 50Hz, 1500W |
| Data Interface | USB + Ethernet (for real-time data export) |
What items can be tested?
Surface dust content detection of air conditioning components
Internal dust content detection of air conditioning components
Dust particle size distribution detection
Change detection of dust content of components under different working conditions
Preliminary analysis of dust composition (based on dust type)
Component cleanliness level assessment
If necessary, please contact our staff for further details!

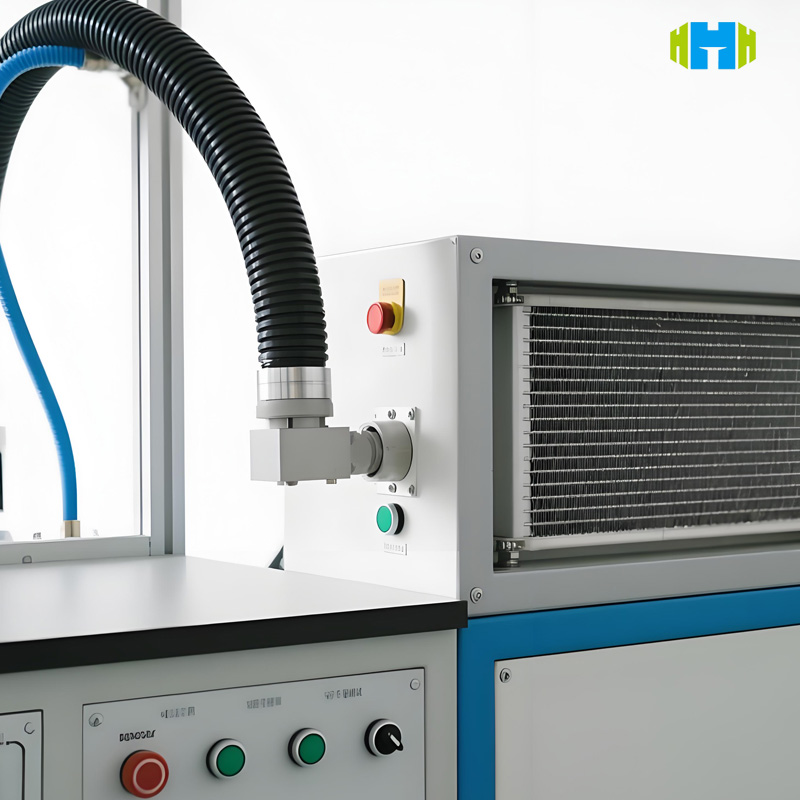

Detail pictures:
