The air-conditioning condenser and evaporator moisture content test bench is specially designed for the research and development and quality control of refrigeration components. It can realize the rapid detection and data visualization analysis of residual moisture, helping enterprises to improve product reliability.
Brand :
HONGCEModel :
HC-ACPT004Certificate :
Calibration certificate(cost additional)Product Origin :
ChinaPayment Method :
L/C, T/TRegular Packaging :
PlywoodAir conditioning condenser evaporator water content test bench 0-100mg accurate measurement
Product introduction:
The air conditioner condenser and evaporator moisture content test bench is carefully built by the company's R&D team after numerous tests and improvements to address the difficulties and needs of moisture content detection in the production process of air conditioner components. The equipment integrates advanced detection technology and intelligent control systems, and can quickly and accurately detect the moisture content in the air conditioner condenser and evaporator.
Product Features:
High-precision detection: Using internationally leading sensors and detection technology, it can accurately measure trace moisture in air-conditioning components. The detection accuracy reaches the top level in the industry, providing reliable data support for product quality.
Intelligent control: Equipped with advanced intelligent control system, it can realize automatic calibration, automatic detection and automatic data processing, which greatly improves the detection efficiency and reduces manual operation errors.
Humanized design: The operation interface is simple and clear, and operators can quickly get started without complex training. The layout of the equipment is reasonable, which is convenient for daily maintenance and reduces the cost of use.
Product use:
The water content test bench for air conditioner condensers and evaporators is mainly used in air conditioner component manufacturers, air conditioner manufacturers and related testing institutions. In the production process of air conditioner components, the water content of air conditioner condensers and evaporators can be tested at various stages such as raw material procurement, production and processing, and finished product delivery to ensure that the water content of each component meets the product design requirements. For air conditioner manufacturers, key components can be tested before the whole machine is assembled to avoid problems such as reduced air conditioner performance and shortened life due to excessive water content in the components. At the same time, it can also be used by scientific research institutions to research and develop water content detection technology for air conditioner components, providing support for the industry's technological progress.
Technical Parameters:
|
Item
|
Technical Parameters
|
|
Test Objects
|
Air conditioning condensers, evaporators
|
|
Detection Principle
|
Karl Fischer Titration Method
|
|
Measurement Range
|
0.1μg - 100mg (moisture content)
|
|
Detection Accuracy
|
±0.5% (relative to measured value)
|
|
Resolution
|
0.1μg
|
|
Sampling Frequency
|
10 times/second
|
|
Temperature Control Range
|
10°C - 60°C
|
|
Temperature Control Accuracy
|
±0.5°C
|
|
Humidity Control Range
|
10%RH - 90%RH
|
|
Humidity Control Accuracy
|
±2%RH
|
|
Air Supply Pressure
|
0.4MPa - 0.8MPa
|
|
Power Supply Requirements
|
AC 220V±10%, 50Hz
|
Detail pictures:

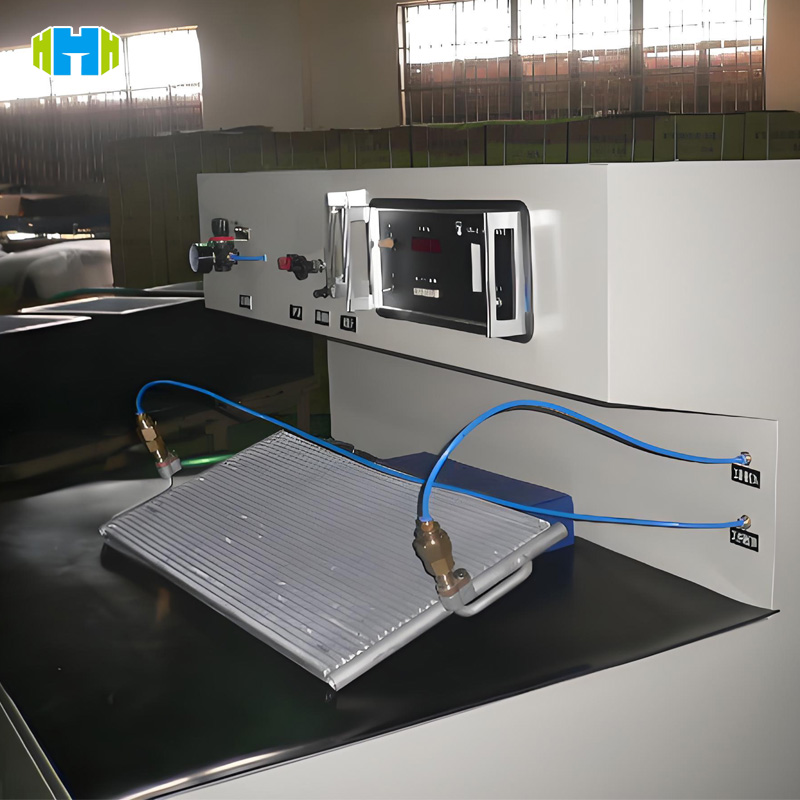

The test scene of the air conditioner condenser placed on the test bench
