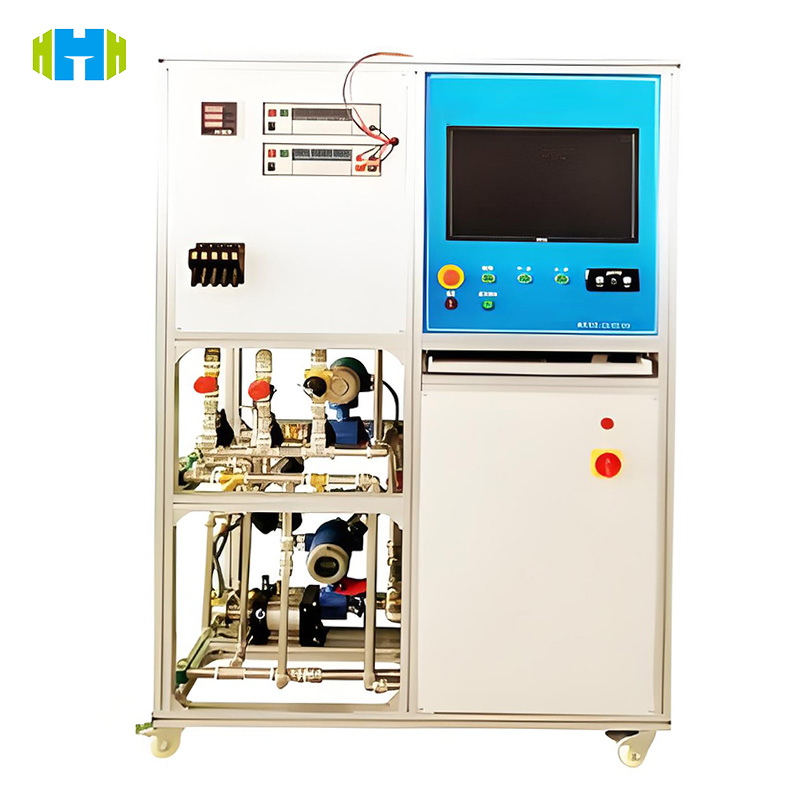

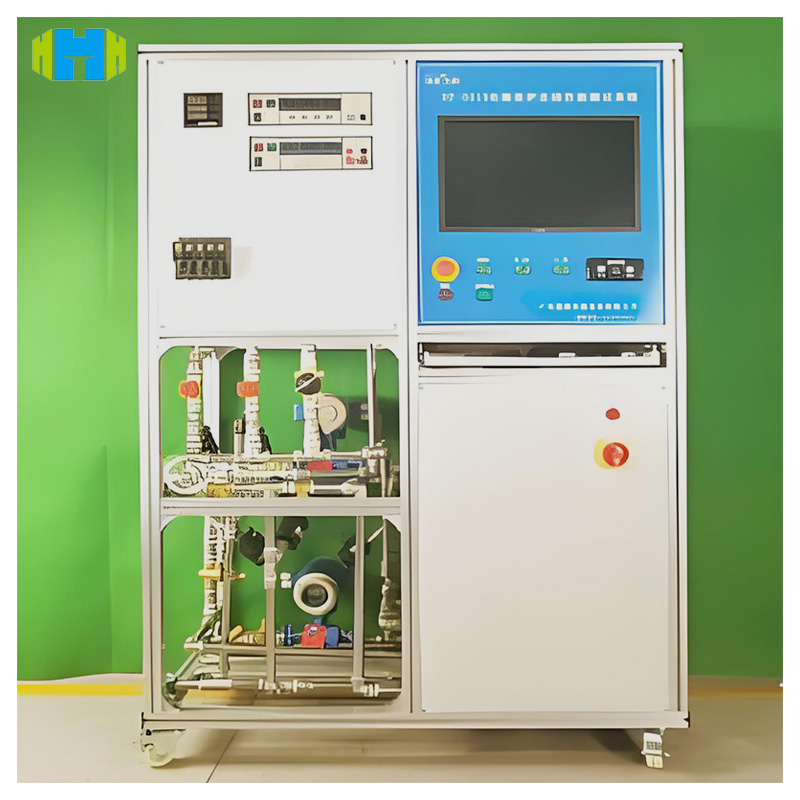

HCTE-WMBT006 is the core equipment for online detection of the full performance of electric heating water boilers. It supports fully automatic testing of electric wall-mounted boilers below 70kW, integrates bathroom + heating dual system detection (±0.5℃ temperature accuracy, 0.5 level pressure accuracy), covers 20+ test functions (water flow, withstand voltage, electrical parameters, etc.), uses imported components to ensure stability, and is suitable for production line online quality inspection, R&D verification and safety certification scenarios.
Brand :
HONGCEModel :
HC-WMBT006Certificate :
Calibration Certificate(Cost Additional)Product Origin :
CHINAPayment Method :
L/C, T/TRegular Packaging :
PlywoodGB 4706 Electric Wall-Mounted Boiler Online Fully Automatic Test Bench Full Performance Test
Product features:
20+ fully automated functions: Preset bathroom, heating, and safety test processes, support user-defined programming (up to 20 functions), production line cycle ≤3 minutes/unit.
Dual system precision detection: Synchronous testing of bathroom (domestic hot water) + heating system, temperature ±0.5℃, pressure 0.5 level accuracy, no missed detection of critical faults.

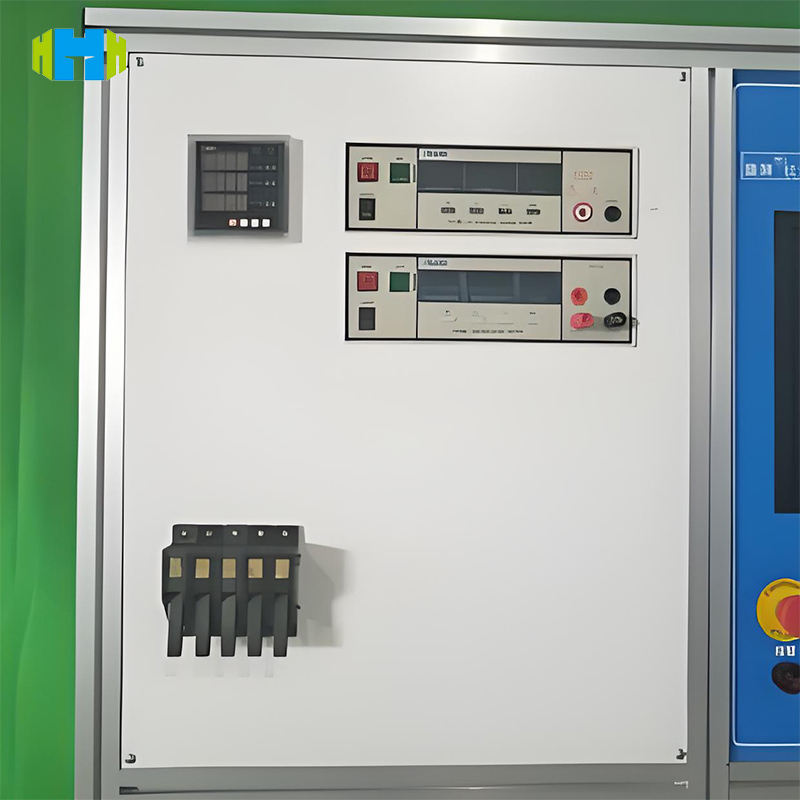

Built-in safety test: Integrated withstand voltage test (high pressure 0-1.6MPa, low pressure 0-0.6MPa), ground test, meet GB/T 20289 safety requirements.
Software intelligent interaction: Real-time display of test curves, automatic generation of test reports, historical data cloud storage (≥10,000 groups), zero-barrier traceability.
70kW flexible adaptation: Standard adaptation of electric wall-mounted boilers below 70kW, support for customized expansion (power/parameters adjustable).
Imported device stability control: The core sensor and valve group adopt imported brands, with a response speed of ≤50ms and parameter fluctuation during the test process of ≤±0.2%.
National reference standards:
GB/T 20289-2016 Performance test of electric heating water boiler: temperature accuracy, water flow, electrical parameters, pressure resistance.
GB 4706.1-2005 General requirements for household appliance safety: ground test, electrical parameter safety range.
Product use:
Production line: Online quality inspection of electric wall-mounted boilers below 70kW (daily test ≥150 units), screening of defective products, and ensuring shipment quality.
R&D end: Enterprise laboratory verifies the performance of new products (such as ±0.5℃ temperature control accuracy, electrical parameter matching).
Certification end: Third-party testing agencies conduct pre-inspection before GB/T 20289 certification to ensure data compliance.
| Parameter | Technical Details |
| Model | HCTE-WMBT006 |
| Power Compatibility | ≤70kW (Customizable for Higher Power) |
| Sanitary System (Hot Water) | |
| Inlet Water Temp. Range | 0–40℃ (±0.5℃ Accuracy) |
| Outlet Water Temp. Range | 0–100℃ (±0.5℃ Accuracy) |
| Water Flow Range | 3–40L/min (±1.5 Class Accuracy) |
| Inlet Pressure Range | High: 0–1.6MPa / Low: 0–0.6MPa (0.5 Class Accuracy) |
| Heating System | |
| Inlet Water Temp. Range | 0–100℃ (±0.5℃ Accuracy) |
| Water Flow Range | 3–40L/min (±1.5 Class Accuracy) |
| Inlet Pressure Range | 0–1.6MPa (0.5 Class Accuracy, Heating-specific) |
| Electrical Parameter Testing | |
| Voltage Range | 0–300V (±0.5 Class Accuracy) |
| Current Range | 0–20A (±0.5 Class Accuracy, 70kW-compatible) |
| Power Range | 0–70kW (±0.5 Class Accuracy) |
| Control & Software | |
| Control Mode | PLC + 12-inch Touchscreen HMI (Custom Program Support) |
| Data Storage | ≥10,000 Records (Cloud + USB Export) |
| Test Report Generation | Auto-generated (with Timestamp + Test Curves) |
| Environment & Protection | |
| Ambient Temperature | 0–40℃ (Non-condensing) |
| Protection Rating | IP30 (Cabinet) / IP44 (Sensor) |
| Power Supply | AC380V±10%/50Hz, 1000W |
Excellent after-sales service:
We believe that our responsibility does not stop at the sale of our products. Therefore, we provide comprehensive after-sales services to ensure that the equipment you purchase can keep in optimal working condition. Our services include:
Our experienced technicians provide professional installation and commissioning to help you get your system up and running quickly.
Free training for your operators to ensure that they are proficient in using the system.
Online technical support to answer any questions or problems you may have.
One-year warranty on the entire system, covering parts and labor.
Regular maintenance services to extend the life of the equipment.
Spare parts are available to minimize downtime.
This equipment is specially designed for testing the performance of electric wall-mounted boilers. It is committed to providing customers with comprehensive solutions, strictly controlling product quality, improving product competitiveness, and accelerating product research and development.
