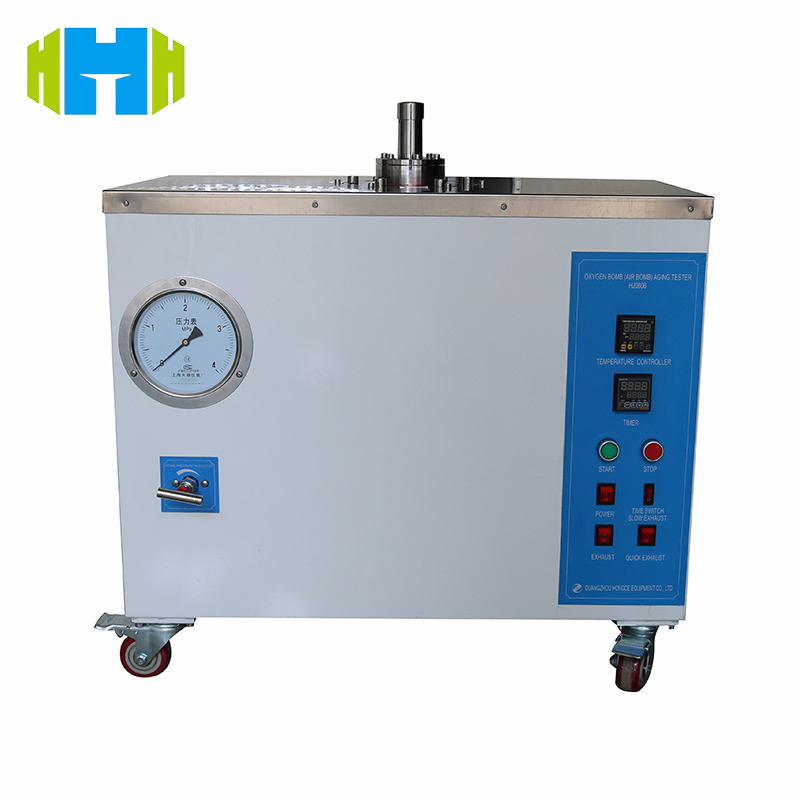

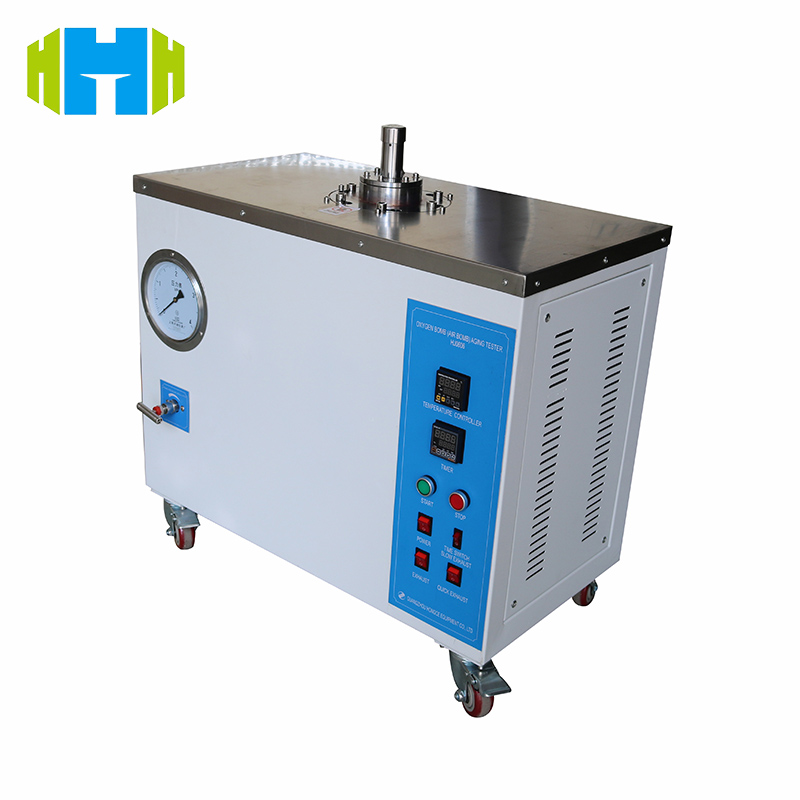

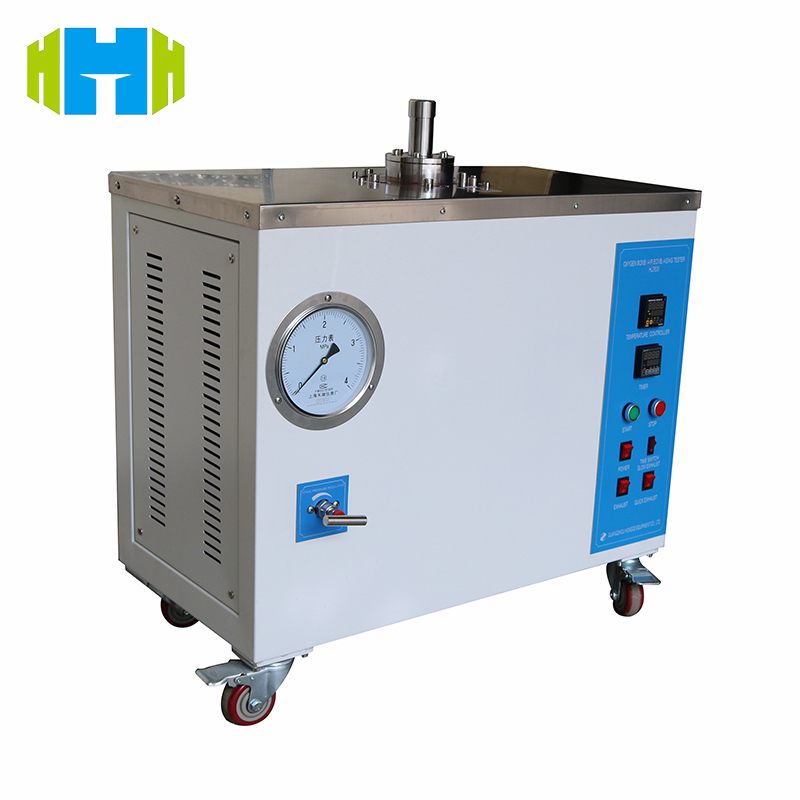

HJ0606 oxygen bomb aging tester strictly complies with international standards such as IEC 60335-1 Clause 22.32, IEC 60811-1-1 and IEC 60811-1-2, and is specially designed for oxidative thermal aging performance testing of polymer materials such as wires and cables, rubber (plastic, leather) insulation layers and sheaths.
Brand :
HEJINModel :
HJ0606Product Origin :
ChinaPayment Method :
T/T, L/CRegular Packaging :
PlywoodHome Appliance Testing Equipment Oxygen Bomb For Aubber Ageing Test
Test conditions of Oxygen Bomb For Aubber Ageing Test:
1. The materials which have different substantially compositions should not be tested simultaneously.
2. The sample should not contact the tank wall, and the samples should not contact each other.
3. The sample volume should be less than 1/10 of the tank’s effective volume.
4. Oxygen should be no less than 97% purity industrial oxygen, air should be no oil, non-moist (The air compressor is supplied by the user).
Standard of Home Appliance Testing Equipment:
IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements Clause 22.32;
IEC 60811-1-1 sub clause 9.1 and IEC 60811-1-2 sub clause 8.3 and etc.
Application of Home Appliance Testing Equipment:
Oxygen Bomb Aging measures the resistance of the physical properties of a material to deterioration caused by oxidative and thermal aging. Accelerated aging is performed by enclosing materials in laboratory apparatus with oxygen and heating the vessels. Tensile testing, durometer, tear and other physical tests are performed before and after testing.
Test sample of Oxygen Bomb For Aubber Ageing Test:
Wires, cables, rubber (plastic, leather) insulation layer and sheath, as well as other polymer materials.
Feature:
The part is suspended freely in an oxygen bomb, the effective capacity of the bomb being at least 10 times the volume of the part. The bomb is filled with oxygen not less than 97 % pure, to a pressure of 2,1 MPa ± 0,07 MPa and maintained at a temperature of 70 °C ± 1 °C.
Parameters:
| Input Power | 230V/50HZ |
| Secure Burst Pressure | 2.7～3.3MP |
| Temperature-controlled range | indoor temperature～200℃ |
| Outer Chamber Dimensions | 820mm×420mm×670mm |
| Inside Chamber Dimensions | Diameter 123×Height 337mm |
| Inside Chamber Volume | 4000cm³ |
| Heating Power | 2.5KW |
| Temperature Alarm | 0～200℃ Adjustable |
| Temperature deviation | ±0.5℃ |
| Temperature Control | Intelligent control |
| Temperature Display | Thermometer display |
| Material | Inside chamber is made of stainless steel and outer chamber is made of electrostatic spraying steel plate |
