Designed specifically for microwave ovens and oven door systems, it complies with the IEC 60335-2-25 safety standard (Clause 18 mechanical durability test requirements) and supports millions of opening and closing cycle tests on hinges, seals and other components. It is suitable for home appliance manufacturers and quality inspection agencies to verify the mechanical life and sealing of oven door systems, and is the core testing equipment for microwave oven safety certification.
Brand :
HEJINModel :
HJ0637Product Origin :
ChinaPayment Method :
L/C, T/TRegular Packaging :

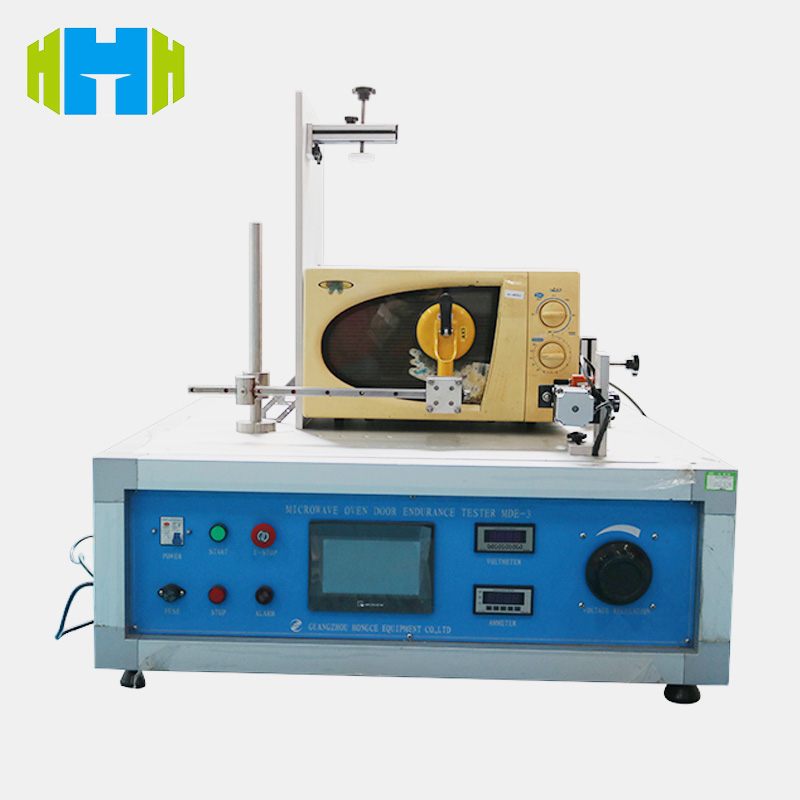

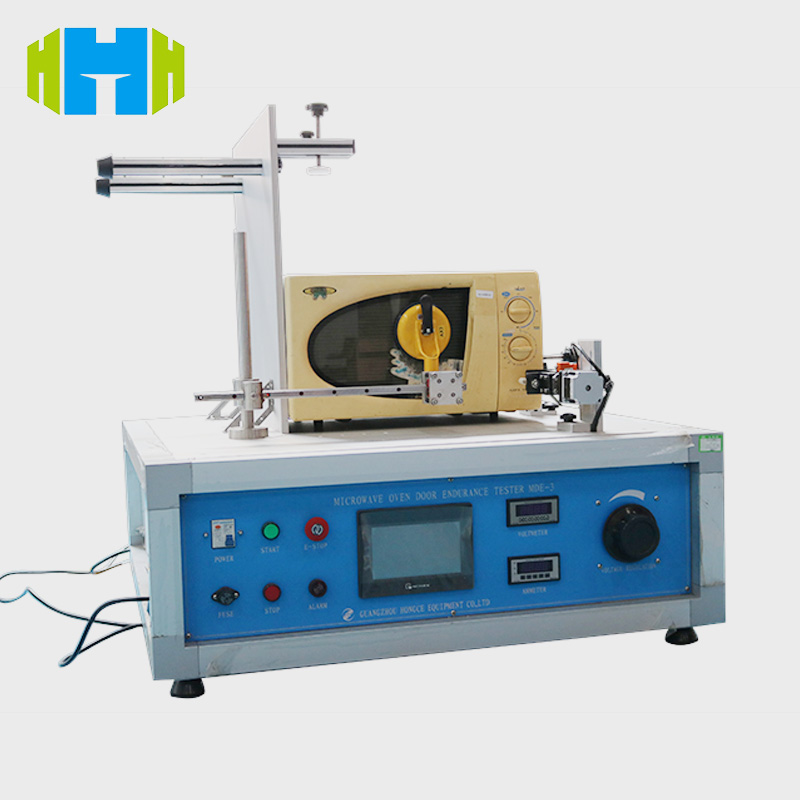

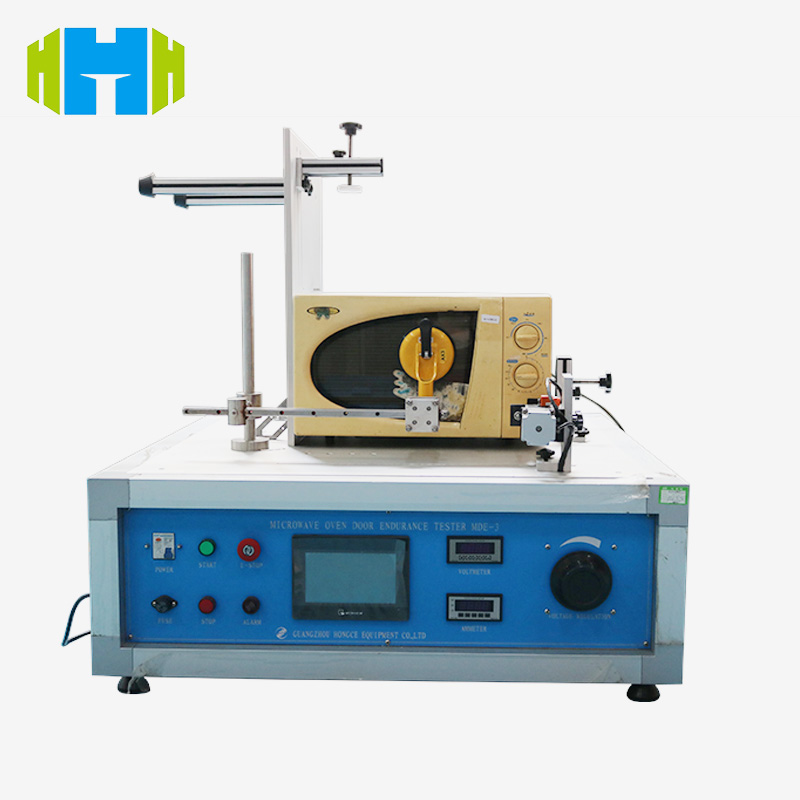

PlywoodIEC60335-2-25 Microwave Oven Door Endurance Tester 2kw With Touch Screen
Standard:
IEC 60335-2-25 household and similar electrical appliances – safety: part 2-25:particular requirements for microwave ovens, including combination microwave ovens, clause 18.
Application:
The device is used for mechanical endurance test to microwave oven door system includes a hinge structure, microwave seals and other related components.
Test sample:
Microwave oven, oven.
Feature:
The equipment adopts PLC and stepper motor control, with all stainless steel mechanical hand, vacuum suction structure, standard TFT true color LCD touch screen, can preset test angle and speed, simulated a human hand to open and close the door of microwave ovens and similar equipment, achieve intelligent control. The machine frame is made of high grade aluminum alloy profile, and the mechanical arm is installed on the support of the frame, can satisfy left open and upper open door endurance test of different size. The power supply socket has the function of detecting, which can judge whether the test sample is electrified; during load test, if the test sample is not electrified during the test, the equipment will be automatically shut down. This feature can be enabled on the demands.
Parameters:
| Control | PLC |
| Display | True color liquid crystal display (7 Inch Touch screen) |
| Frame structure | High grade aluminium profile |
| Power supply | AC 220V 50HZ |
| Test times | 0-999999 preset, automatic stop when test time finished |
| Open/Close time | 0-9999S preset |
| Open/Close rate | Adjustable |
| Open angle | 0-180°preset |
| Station | One station(left open or top open) |
| Door unlock | Eccentric wheel mechanism automatic unlock the door lock |
| Dimension | 1000*1000*800mm |
| Load | Provided with a 10A power socket, can be used for samples below 2000W |
