This flagship platform for full-performance testing of gas wall-mounted boilers integrates 32 heating + hot water test functions, covers ±0.1% accuracy temperature/pressure/flow detection, is deeply compatible with 8 international and domestic standards such as EN625/EN483/GB25034, is equipped with imported core components (with a lifespan of twice that of ordinary equipment), supports MES system docking + power-off memory, and is suitable for R&D critical verification, production line batch quality inspection and international certification pre-inspection.
Brand :
HONGCEModel :
HCTE-WMBT007Certificate :
Calibration Certificate(Cost Additional)Product Origin :
CHINAPayment Method :
L/C, T/TRegular Packaging :
PlywoodWall Mounted Boiler Comprehensive Performance Test System ±0.1% Accuracy 32 Full Functions 8 Standards Compatible
Product features:
National reference standards:
Product use:
Technical Parameters
| Parameter | Technical Details |
| Model | HCTE-WMBT007 |
| Compliant Standards | EN625-1996, EN483-1999, GB25034-2010 (8 total) |
| Temperature Parameters | |
| Inlet/Outlet Water Temp. Range | 0–60℃ / 0–120℃（±0.1% Accuracy, 0.1℃ Resolution） |
| Gas Temperature Range | 0–50℃（Class 0.5 Accuracy, 0.1℃ Resolution） |
| Pressure Parameters | |
| Gas Primary Pressure | 0–5000Pa（±0.5% Accuracy, 1Pa Resolution） |
| Gas Secondary Pressure | 0–5000Pa（±0.5% Accuracy, 1Pa Resolution） |
| Inlet Water Pressure | High: 0–1.6MPa / Low: 0–1.6MPa（Class 0.5 Accuracy） |
| Heating System Pressure | 0–1MPa（Class 0.5 Accuracy） |
| Flow Parameters | |
| Sanitary Water Flow | 0–20L/min（±0.1% Accuracy, 0.001L/min Resolution） |
| Heating Water Flow | 0–30L/min（±0.1% Accuracy, 0.001L/min Resolution） |
| Gas Flow | 0.04–6m³/h（±0.1% Accuracy, 1Pa Resolution） |
| Control & Connectivity | |
| Control Mode | PLC + 15-inch Touchscreen HMI（Custom Programming Support） |
| Data Storage | ≥10,000 Records（Auto-save + Custom Report Formats） |
| MES Compatibility | Temp./Pressure/Flow Data Upload Supported |
| Environment & Power | |
| Ambient Temperature | 0–40℃（Non-condensing） |
| Protection Rating | IP30（Cabinet） / IP44（Sensor） |
| Power Supply | AC380V±10%/50Hz, 1500W |
This equipment is specially designed for testing the performance of electric wall-mounted boilers. It is committed to providing customers with comprehensive solutions, strictly controlling product quality, improving product competitiveness, and accelerating product research and development.
Details
In the quality control of wall-mounted boilers, the wall-mounted boiler durability testing equipment can help you solve the problem of wall-mounted boiler quality inspection with its accurate testing data and humanized design.
Details
With humanized design and excellent performance, we provide comprehensive and high-precision solutions for the inspection of wall-mounted boiler parts, helping enterprises to control quality and improve market competitiveness.
Details

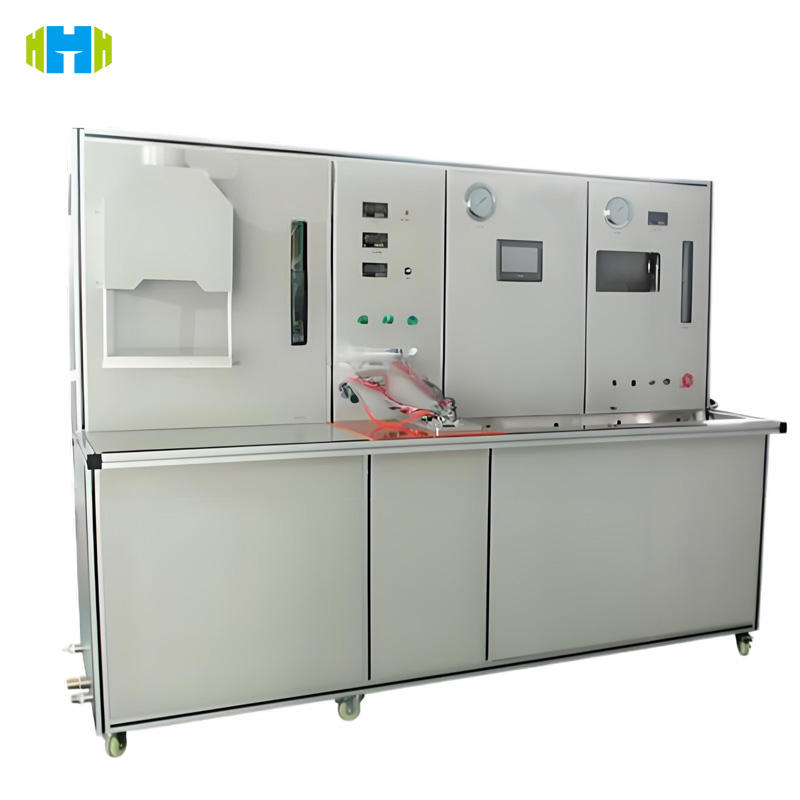

WMB-001 is the core equipment for detecting the combustion chamber seal of gas wall-mounted boilers. It strictly complies with Article 7.16 of GB6932-2001 "National Standard for Household Gas Instantaneous Water Heaters" to accurately detect the leakage of the combustion chamber. Through the 1.5-level precision flow meter and PLC + touch screen intelligent control, it can realize automatic testing and judgment of the leakage of the sealing structure, and is suitable for wall-mounted boiler production quality inspection, R&D and third-party testing scenarios.
Details
WMB-002 is the core equipment for full performance testing of gas wall-mounted boilers. It is deeply compatible with 8 national standards such as GB6932-2015, GB25034-2010, CJ/T395-2012, and can simultaneously complete full-dimensional tests of heat load, energy efficiency, water/gas parameters, wind pressure and electricity (with an accuracy of 0.5% F.S), covering the research and development verification, production line quality inspection and inspection and certification scenarios of water heaters, heating furnaces, and condensing models.
Details
WMB-003 is the core equipment for aging test of gas heating furnaces and water heaters. It strictly complies with GB6932-2015 (domestic gas instantaneous water heaters) and GB26655-2015 (energy efficiency limit values) standards, and simulates real aging conditions through computer + PLC intelligent control (precise control of water / gas pressure, temperature, and flow, with an accuracy of 0.5% F.S).
Details

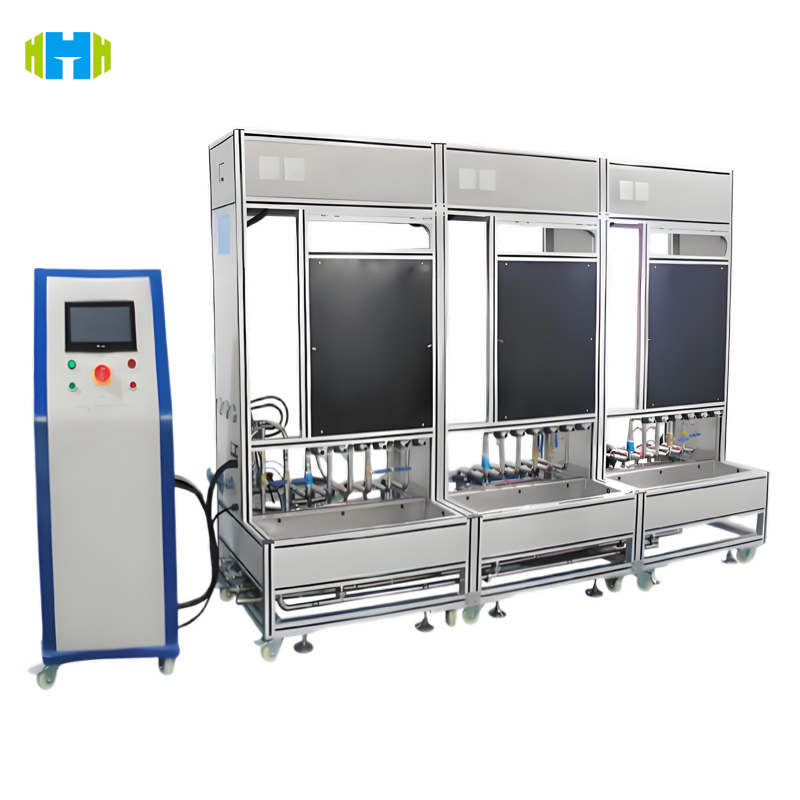

HCTE-WMBT002 is the core equipment for life verification of gas heating water boilers. It supports flexible expansion of 1-50 stations, accurately controls water pressure (0.05-0.5MPa), gas pressure (0.5-5kPa) and water on-off time (0-999s), and realizes 999999 cycles of endurance test through PLC + touch screen control. It is suitable for R&D life verification, production line batch testing and quality inspection and certification scenarios. The core components are imported brands to ensure test stability.
Details

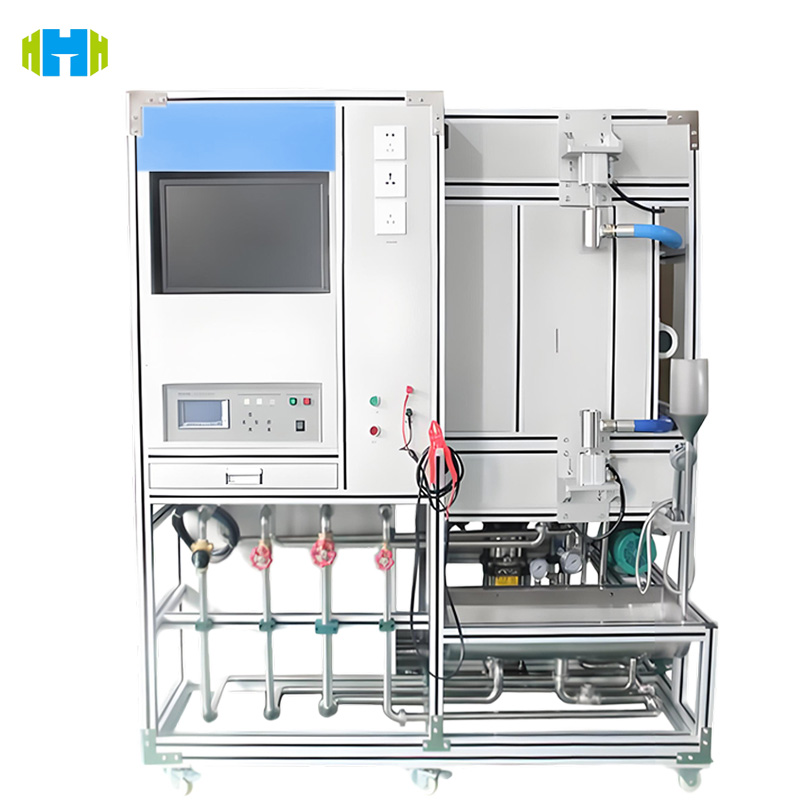

WMBT003 is a full-dimensional test platform for the core components of gas wall-mounted boilers. It integrates four modules: proportional valve air tightness, water flow sensor, burner performance, and pressure resistance test. Through PLC + touch screen intelligent control, it achieves 0.1V voltage resolution and 1-30L/min water flow precision control. It is suitable for wall-mounted boiler R&D verification, production line quality inspection and supplier inspection scenarios. The core valve group adopts imported brands to ensure test stability.
