110KW Engine Performance Test Bench 175N·m Torque Motor Performance Test System

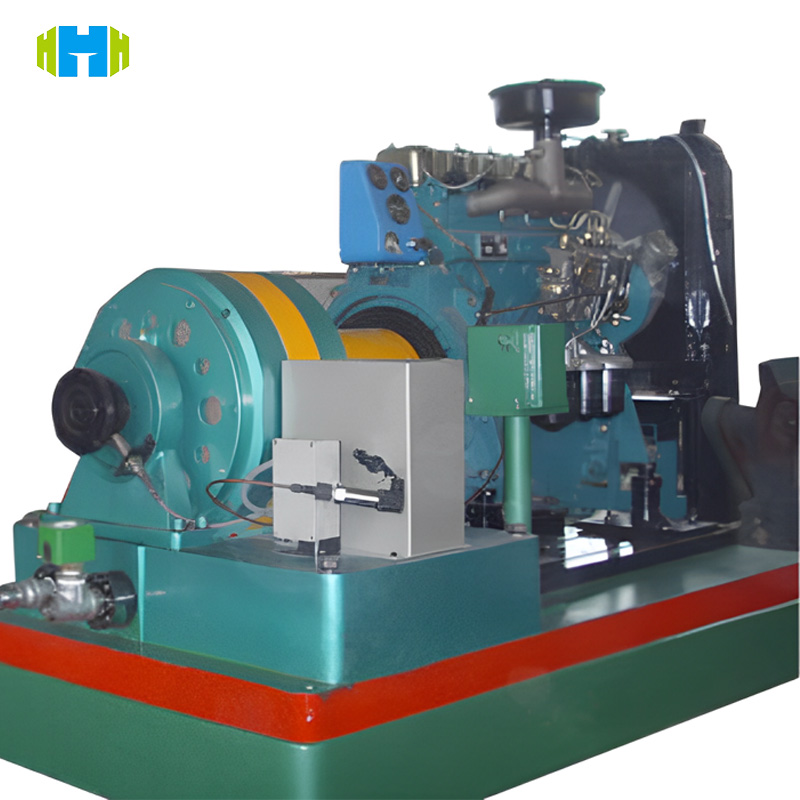

The HCTE-MPTE-003 Engine Test Bench is a high-precision testing system engineered for diesel, gasoline, and gas engines. With 110kW power capacity and 175N·m torque measurement, it enables precise control of speed, torque, power, and fuel consumption, meeting rigorous performance and compliance testing requirements for automotive, marine, and power generation industries.

  • Brand :

    HCTE

  • Model :

    HCTE-MPTE-003

  • Certificate :

    Calibration Certificate(cost additional)

  • Product Origin :

    CHINA

  • Payment Method :

    L/C, T/T

  • Regular Packaging :

    胶合板
Inquire Now

110KW  Engine Performance Test Bench 175N·m Torque Motor Performance Test System



Product Introduction

Designed for versatility and accuracy, the HCTE-MPTE-003 integrates a simulation loader, high-precision torque sensor, and intelligent measurement & control system to deliver comprehensive engine diagnostics. Its modular design supports real-time monitoring of critical parameters, automated data logging, and customizable test profiles, ensuring repeatable results for R&D, quality control, and production line testing.

Product Features

  1. Multi-Fuel Compatibility: Supports diesel, gasoline, and gas engines (e.g., natural gas, LPG).
  2. Precision Control: Digitally set speed (0–10,000 rpm) with ±0.1% accuracy and dynamic load simulation.
  3. Automated Workflow: Auto-record test data, generate PDF reports, and store historical logs for traceability.
  4. Customizable Interface: User-editable parameter names and test sequences for diverse applications.
  5. Safety Assurance: Overload alarms, emergency stop, and thermal protection for operator safety.
  6. Energy-Efficient Loading: Dynamometer with regenerative feedback reduces power consumption by ≥30%.

International Reference Standards

  • Performance Testing: ISO 1585 (Reciprocating Internal Combustion Engines – Performance).
  • Emission Testing: ISO 8178 (Measurement of Exhaust Gas Emissions from Internal Combustion Engines).
  • Safety Compliance: IEC 60204-1 (Safety of Machinery – Electrical Equipment) & OSHA 1910.
  • Fuel Consumption: ISO 3016 (Reciprocating Internal Combustion Engines – Fuel Consumption).

Product Uses

  • Automotive OEMs: End-of-line testing for passenger car and commercial vehicle engines.
  • Marine Industry: Performance evaluation of marine diesel engines and propulsion systems.
  • Power Generation: Testing gensets and alternative fuel engines (e.g., natural gas).
  • R&D Labs: Engine optimization for fuel efficiency, emissions, and durability.

Technical Parameters

Test Item Parameter Specifications
Maximum Power 110 kW –
Speed Range 6,000–10,000 rpm ±0.1% accuracy
Maximum Torque 175 N·m ±0.5% F.S.
Torque Speed Range 0–6,000 rpm –
Fuel Consumption Range 0–500 g/kWh ±1% accuracy
Temperature Measurement -40°C–150°C ±1°C
Pressure Measurement 0–10 MPa ±0.5% F.S.
Data Sampling Rate 1,000 Hz –
Power Supply AC 380V, 50Hz, 3-phase –
Control System PC-based with touchscreen Real-time data visualization
Loading Type Dynamometer (eddy current) Continuous adjustable load
Dimensions (L×W×H) 4,000×2,500×1,800 mm –
Weight 2,000 kg –
Noise Level ≤85 dB(A) At full load
Humidity Range 20%–80% RH (non-condensing) –
Calibration Interval Annual (ISO-certified) –

Tested Objects

  • Engine Types:
    • Diesel engines (passenger/commercial vehicles).
    • Gasoline engines (gasoline direct injection (GDI), port fuel injection (PFI)).
    • Gas engines (natural gas, biogas, LPG).
    • Hybrid powertrain engines (ICE + electric motor systems).

Detectable Items

  1. Performance Parameters:
    • Brake power, indicated power, mechanical efficiency.
    • Specific fuel consumption (SFC), air-fuel ratio.
  2. Thermal Parameters:
    • Cylinder head temperature, oil temperature, coolant temperature.
  3. Emission Metrics:
    • CO, NOx, HC emissions (with optional gas analyzer integration).
  4. Reliability Tests:
    • Endurance testing under sustained load, cold-start performance, overload response.
