Motor Performance Test Bench Iec6034 Torque0.5~1.7 N.Mspeed 8000 Rpm

Motor Performance Test Bench Iec6034 Torque0.5~1.7 N.Mspeed 8000 Rpm

Product description with Dynamometer Test Bench:

The Dynamometer Test Bench: Your Premier Solution for Power Testing

Introducing our Dynamometer Test Bench, a state-of-the-art device designed specifically for precision power testing, offering unwavering stability and comprehensive solutions for the industrial sector.

Equipped with the latest sensor technology and electronic control systems, this bench accurately measures and records key performance parameters for a range of power equipment. Whether it's engines, generators, or other rotating devices, the Dynamometer Test Bench provides precise data on power output, torque, rotational speed, and more, giving you a comprehensive understanding of your equipment's operational status and performance.

Dynamometer testing items with Dynamometer Test Bench:

(1) DC resistance test under hot and cold conditions.

(2) No-load test: Obtain the no-load characteristic curve through the test, and calculate the no-load current, no-load power, iron loss and mechanical loss.

(3) Stalled rotor test: Obtain the stalled rotor characteristic curve through the test, and calculate the stalled rotor torque and current.

(4) Load test: This test is used to obtain the load characteristic curve and calculate the modified motor parameters

(5) Temperature rise test: Use resistance temperature measurement method to calculate the motor temperature rise. During the test, the motor winding temperature, center temperature, etc. are monitored through temperature detection equipment.

(6) T-N curve: Draw the T-N curve of the induction motor in real time, and automatically test the maximum torque, minimum torque and speed of the single-phase induction motor after disconnecting the centrifugal switch.

Dynamometer test objects with Dynamometer Test Bench:

The test objects of the motor performance test platform laboratory are mainly various types of motors and their related controllers. This includes, but is not limited to, drive motors and controllers for pure electric or hybrid vehicles, drive motors and controllers for electric buses, and three-in-one drive system assemblies. In addition, other vehicle motors, such as EPS motors, circulating water pump motors, fan motors, window motors, air conditioning compressors, etc., are also among the test objects.

Technical parameters of dynamometer:

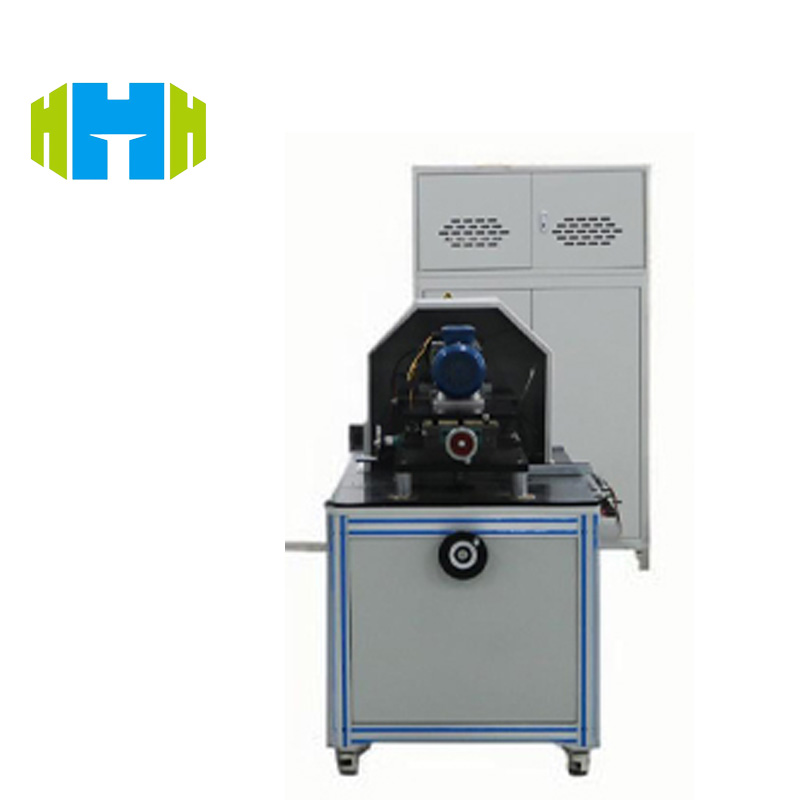

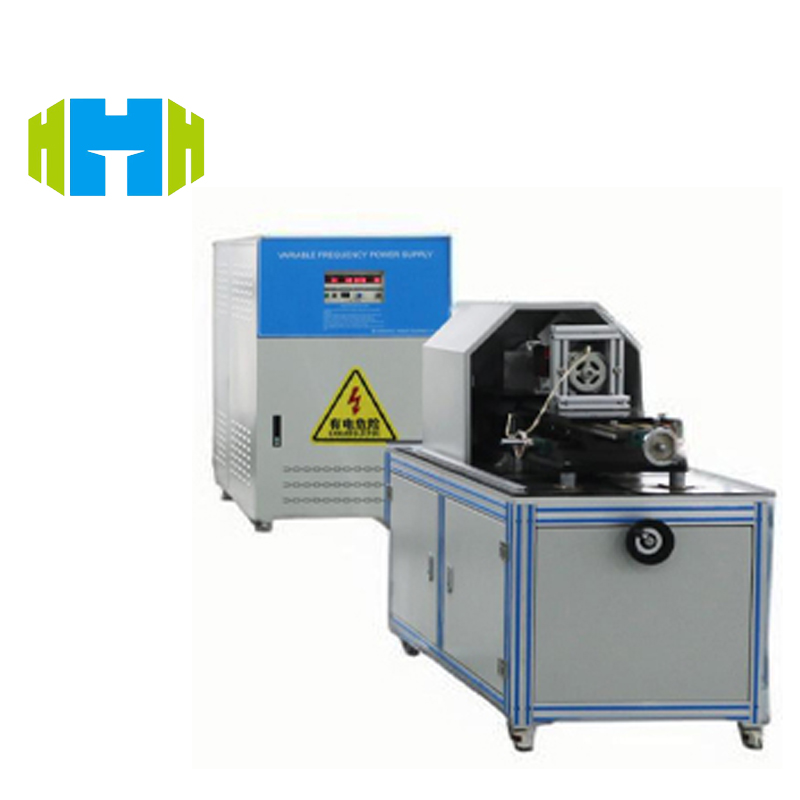

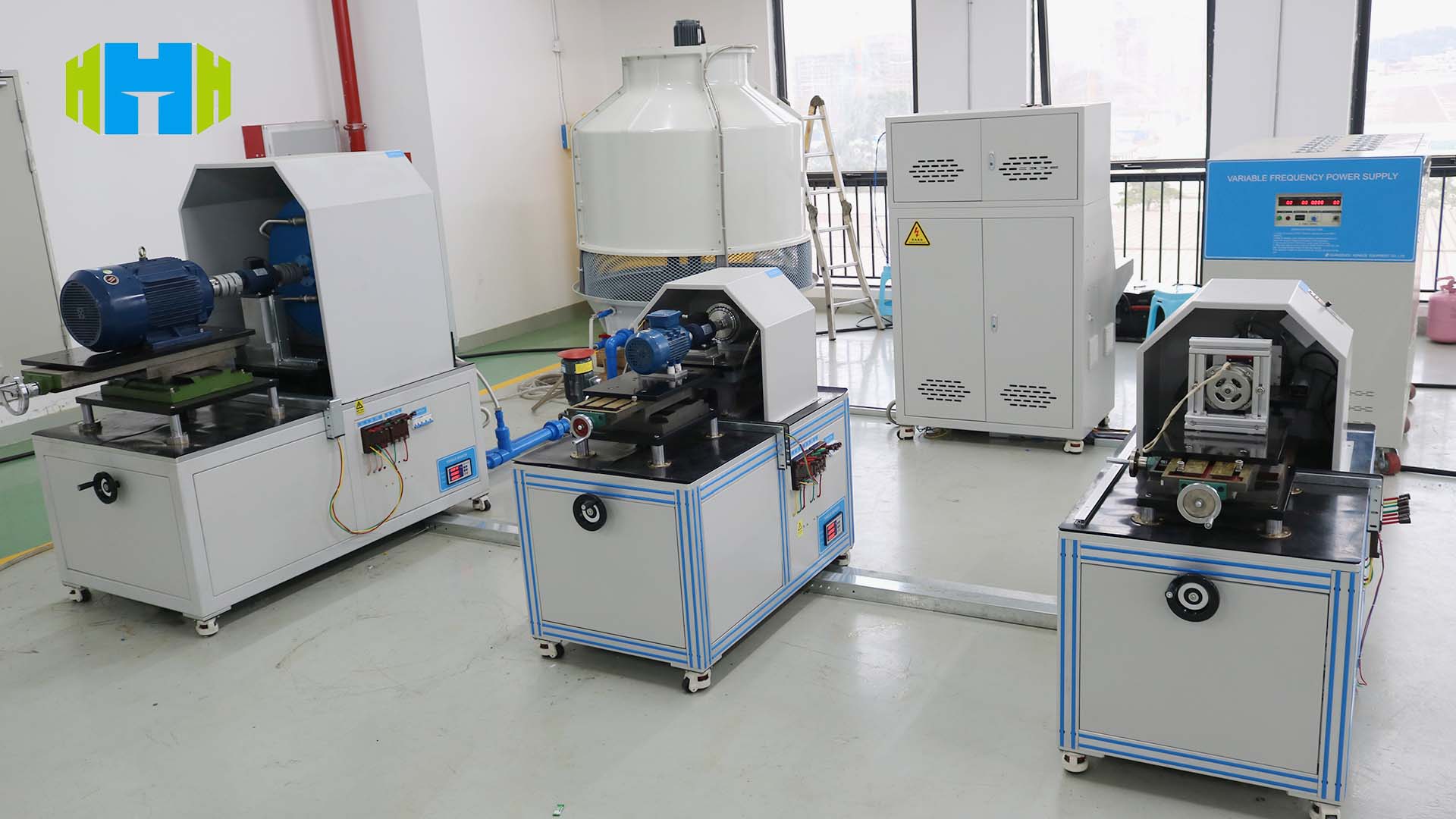

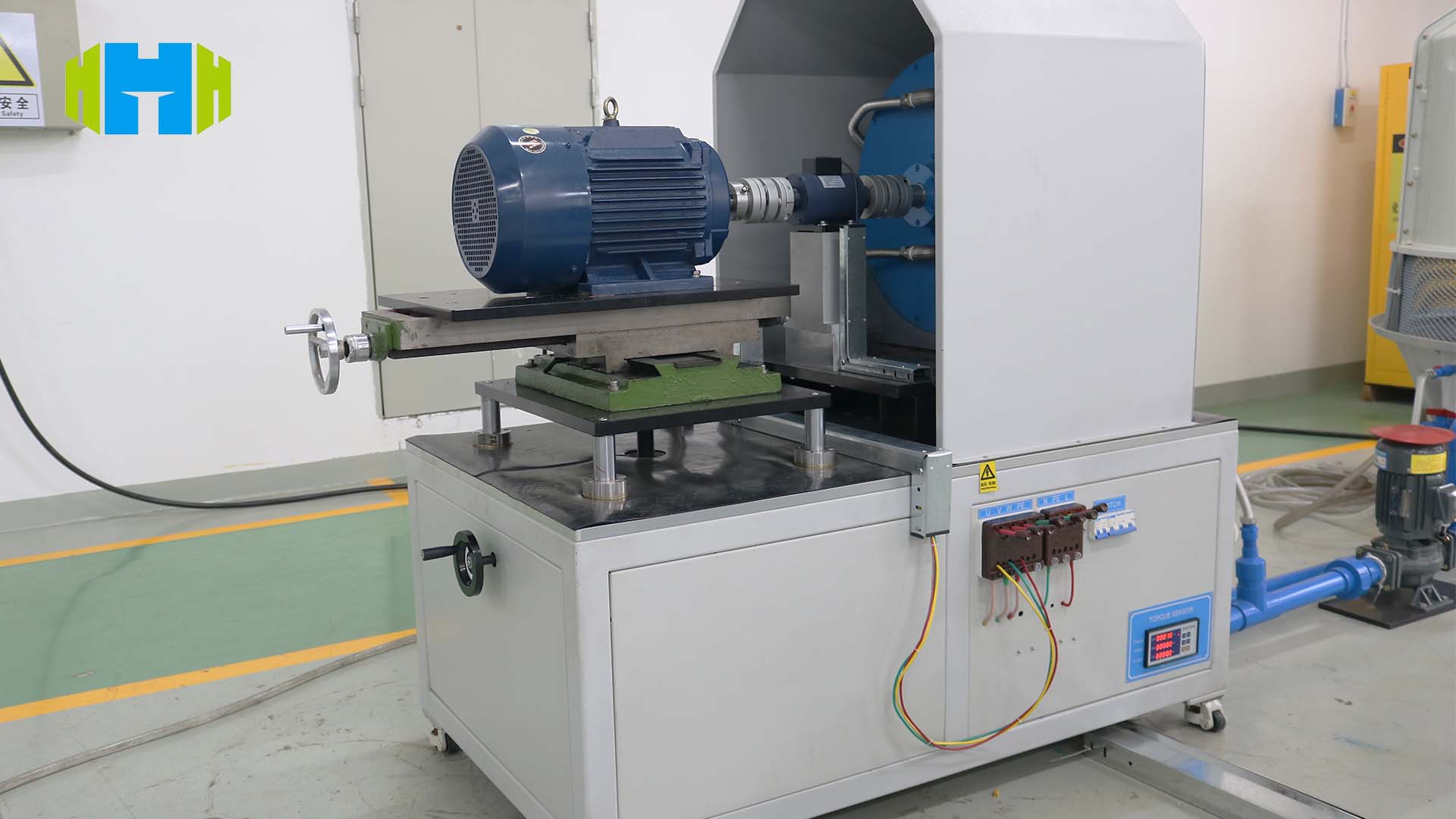

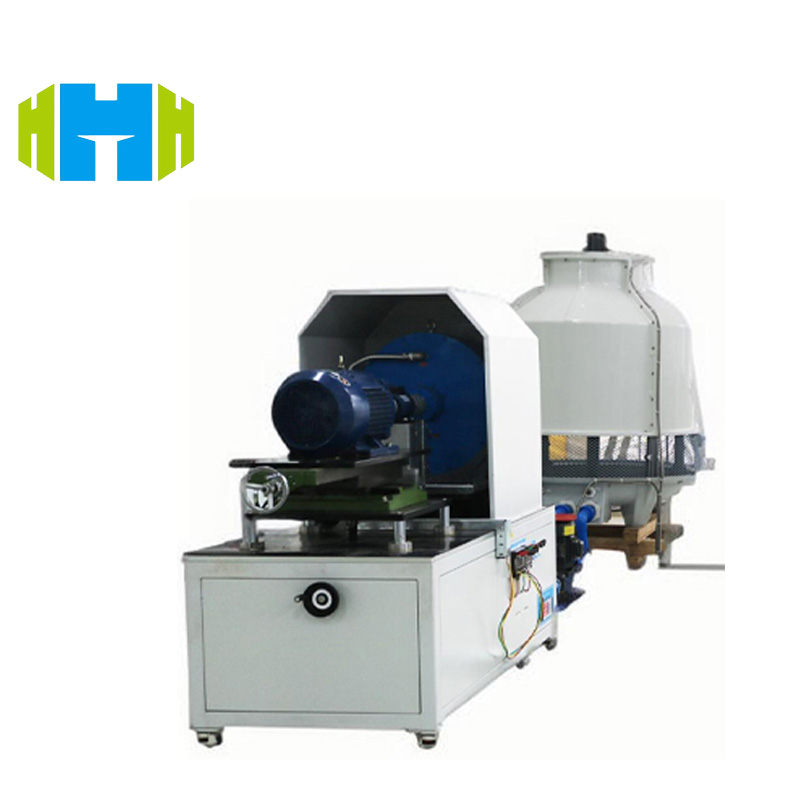

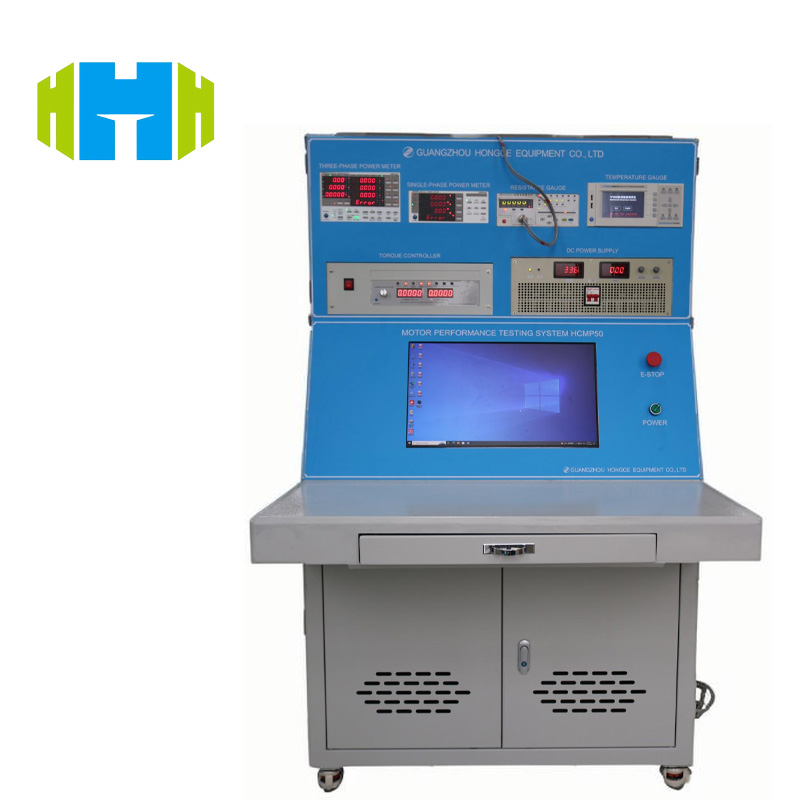

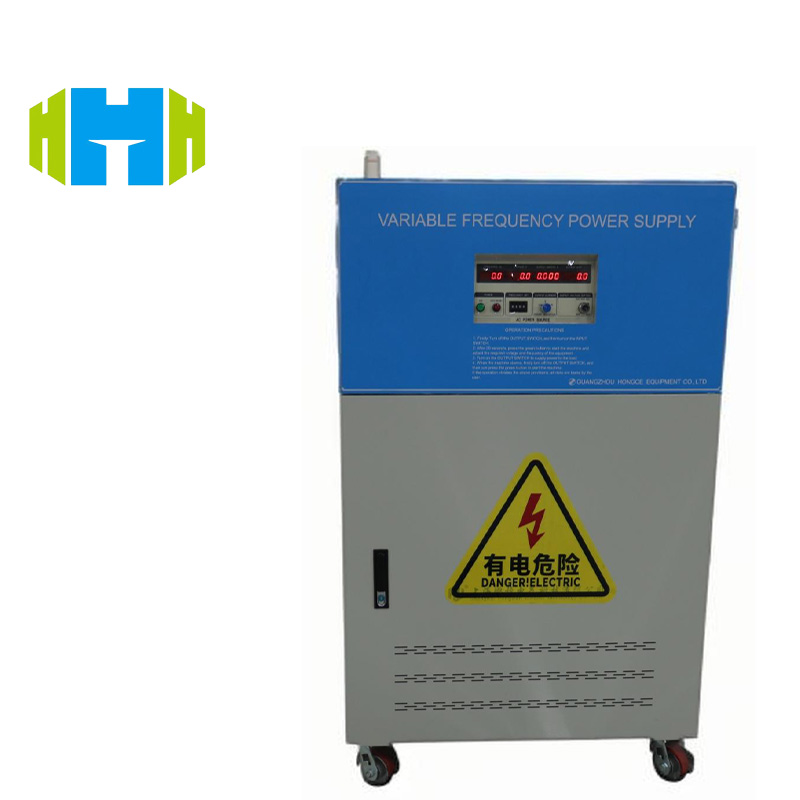

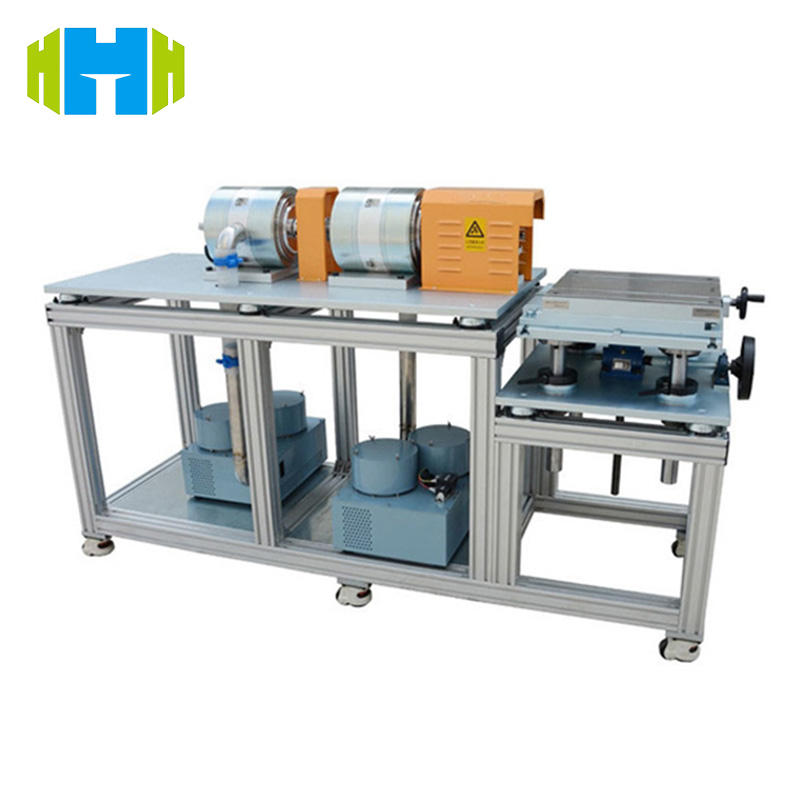

Equipment Pictures:

Our advantage service:

We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.

Technical support:

All our workers are experienced and skilled.
