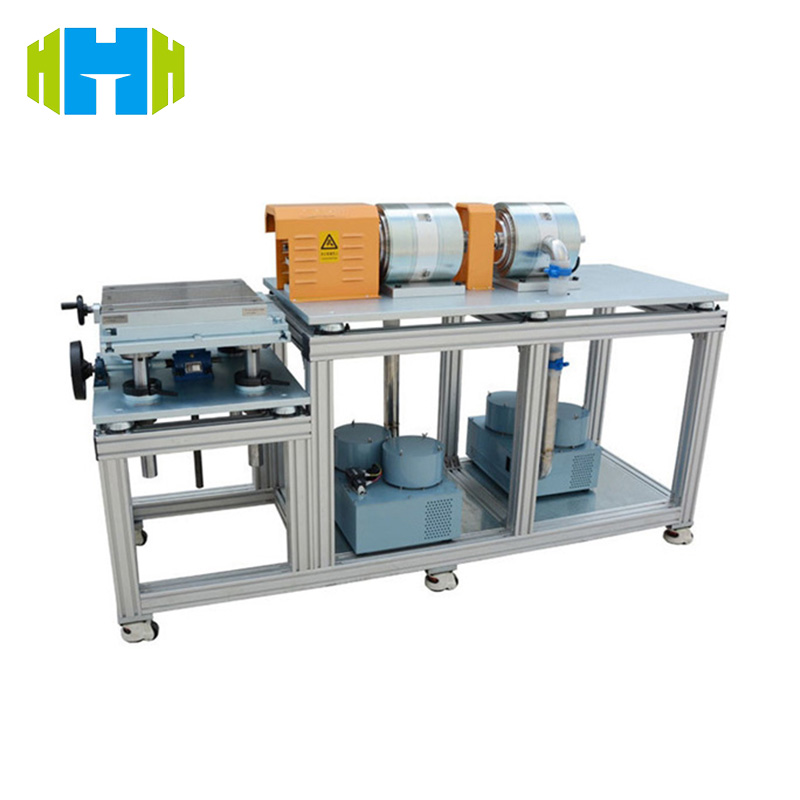

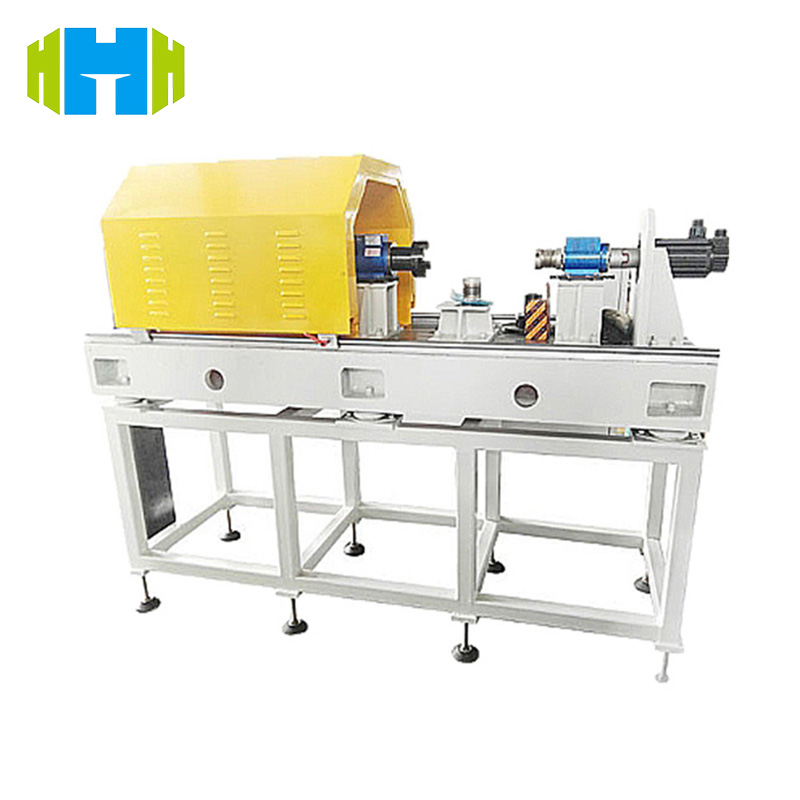

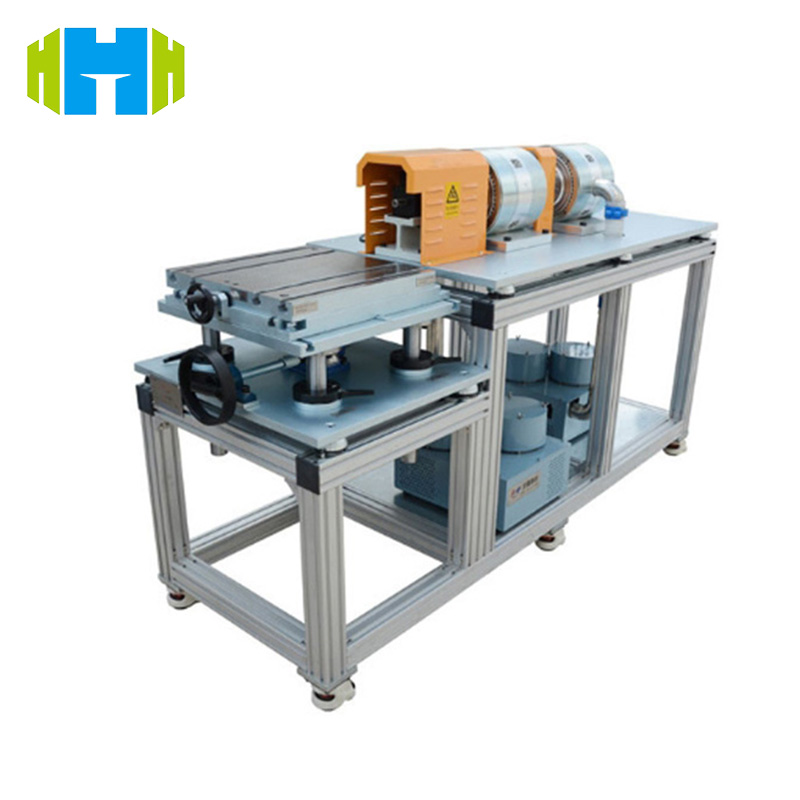

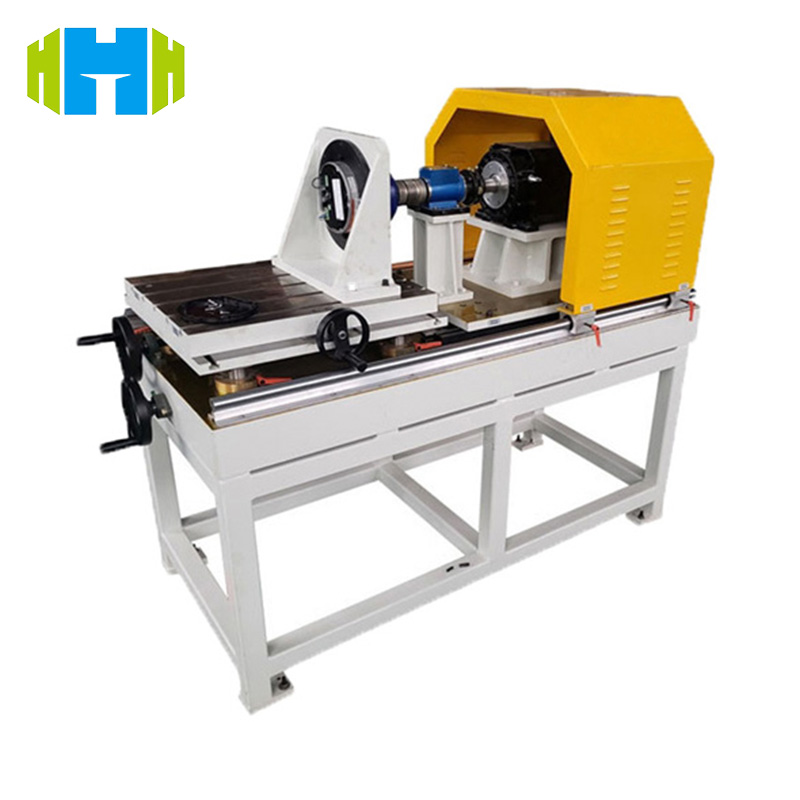

IEC 60034 motor performance test bench Max 8000r/min 0.1 - 100N.m

IEC 60034 motor performance test bench  Max 8000r/min 0.1 - 100N.m

Product Introduction

The motor test bench is mainly used to test the motor's input voltage, input current (AC/DC), input power, power factor (AC); output torque (rated torque, blocking torque, starting torque, maximum torque, etc.), output speed, output mechanical power; efficiency; temperature rise, vibration, noise and so on. It can carry out type tests and factory tests to evaluate the comprehensive performance of the motor and provide an accurate parameter basis for the R&D, production, maintenance, and field application of the motor. Motor comprehensive performance test bench can test all kinds of asynchronous motors, synchronous motors, permanent magnet motors, AC motors, DC motors, new energy motors, and so on.

International reference standards

IEEE 112-2004: Motor efficiency test method standard, ensuring the accuracy and standardization of the equipment's motor efficiency detection.

ISO 20601:2019: Rotating motor performance test standard, ensuring that the equipment complies with international standards when testing various motor performance indicators.

GB/T 755-2008: Equivalent to the IEC standard, standardizing the test process and requirements for motor ratings and performance. HC-MO01 strictly follows this standard.

Product Use

Widely used in new energy vehicle manufacturing, aerospace, industrial automation, high-end equipment and other fields, helping enterprises complete motor R&D testing, product quality testing, after-sales performance evaluation and other tasks, providing solid data support for motor performance optimization and product upgrades.

Test objects

All kinds of asynchronous motors, synchronous motors, permanent magnet motors, AC motors, DC motors, new energy vehicle drive motors, high-speed air compressor motors, high-speed magnetic levitation motors, etc.

Major test items of motor test bench:

• Power and torque characteristic test of motor with controller
• Temperature rise test of motor with controller
• Motor with controller locked-rotor test
• Motor controller control strategy development verification test
• Motor with controller maximum speed test
• Braking regenerative energy feedback test of motor with controller
• Motor external characteristic test
• Development and matching optimization test of motor and controller powertrain
• Performance test and calibration test of motor and controller powertrain
• Efficiency map test
• Accelerated response test
• Torque response test
• Endurance test of steady-state cyclic loading

Parameter of motor test rig:
