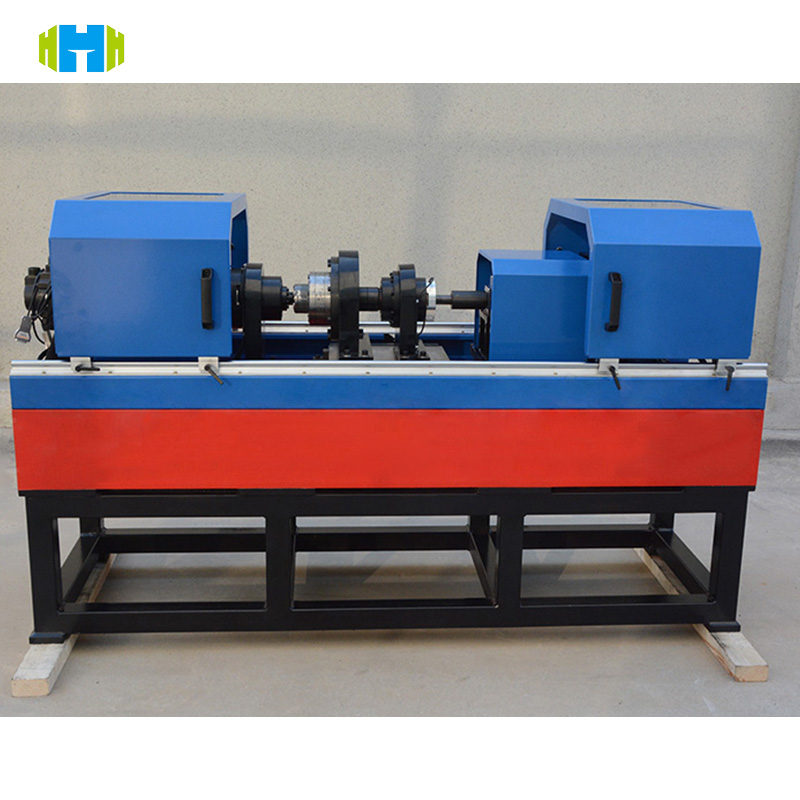

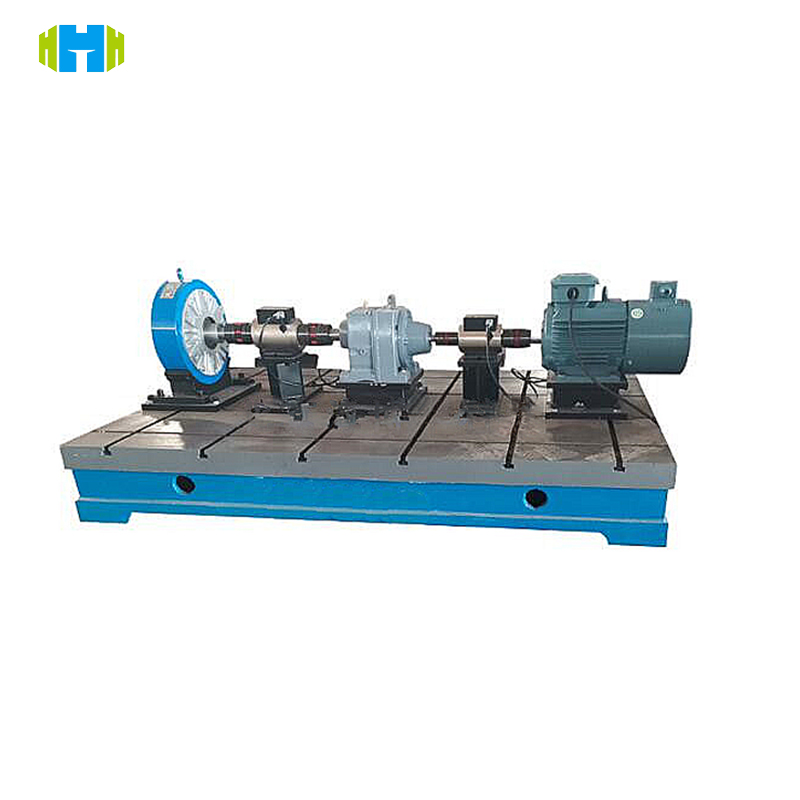

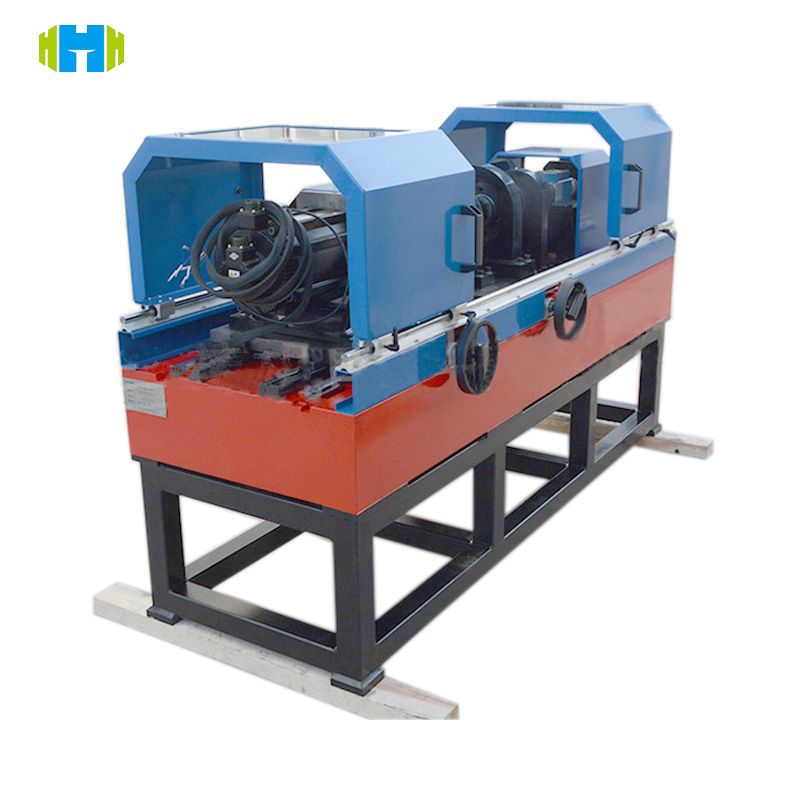

The HC-JSJ-001 Reducer Test Bench is an industrial-grade dynamometer system designed for comprehensive performance evaluation of reducers. With 0.2% torque/speed accuracy and compliance with ISO 6336 standards, this system measures 16+ parameters to ensure reliability in manufacturing, maintenance, and R&D. Ideal for gear, worm, and planetary reducers, it integrates automated control and energy-saving technology for efficient testing.
Brand :
HONGCEModel :
HC-JSJ-001Certificate :
CHINAProduct Origin :
Calibration certificate(cost additional)Payment Method :
T/T,D/P,PaypalRegular Packaging :
PlywoodReducer Dynamometer Test Bench Torque 0.2% Accur 380V Motor Performance Test System
| Test Item | Parameter | Accuracy/Range |
| Max. Output Torque | 1500 N·m | ±0.2% F.S. |
| Speed Ratio | 100 | – |
| Input Speed Range | 0–3000 RPM | ±0.2% RPM |
| Torque Measurement | 0.1–1500 N·m | ±0.1% F.S. |
| Power Measurement | 0.5–500 kW | ±0.5% |
| Efficiency Accuracy | – | ±1% |
| Temperature Range | -20°C–120°C | ±0.5°C |
| Vibration Analysis | 0–50 mm/s (RMS) | ±5% |
| Noise Level | 30–120 dB(A) | ±1 dB(A) |
| Loading Mode | Variable frequency feedback | Stability ±1% |
| Power Supply | 380V AC, 50/60Hz | – |
| Energy Saving | ≥75% | – |
| Data Sampling Rate | 1000 Hz | – |
| Working Temperature | 5°C–40°C | – |
| Humidity | 20%–80% RH (non-condensing) | – |
| Dimensions (L×W×H) | 2500×1800×1500 mm | – |
| Weight | 800 kg | – |
Equipped with the latest sensor technology and electronic control systems, this bench accurately measures and records key performance parameters for a range of power equipment. Whether it's engines, generators, or other rotating devices, the Dynamometer Test Bench provides precise data on power output, torque, rotational speed, and more, giving you a comprehensive understanding of your equipment's operational status and performance.
Details
The high-speed and high-power motor test bench (test system) can be used in various high-speed motor applications such as new energy vehicle drive motors, high-speed air compressor motors, and high-speed magnetic levitation motors. The installation platform can be designed according to the motor to be tested, and the end flange installation structure or the base installation structure can be selected.
Details
The MPT-001 Motor Comprehensive Tester is an advanced industrial-grade solution designed to evaluate motor performance with precision and efficiency. Engineered for manufacturers, maintenance teams, and R&D labs, this system integrates 16+ test parameters, automated workflows, and multi-motor compatibility to ensure compliance with global safety and quality standards.
Details
The HC-JSJ-001 Reducer Test Bench is an industrial-grade dynamometer system designed for comprehensive performance evaluation of reducers. With 0.2% torque/speed accuracy and compliance with ISO 6336 standards, this system measures 16+ parameters to ensure reliability in manufacturing, maintenance, and R&D. Ideal for gear, worm, and planetary reducers, it integrates automated control and energy-saving technology for efficient testing.
Details
The HCTE-MPTE-001 Large Reducer Test Bench is a heavy-duty dynamometer system engineered for comprehensive performance evaluation of industrial reducers. With a 500kW drive motor and 50000N·m maximum load torque, this bench delivers precision testing for high-power applications, featuring energy feedback technology and ISO-compliant diagnostics. Ideal for large-scale gearboxes in mining, marine, and renewable energy sectors.
Details
The HCTE-MPTE-003 Engine Test Bench is a high-precision testing system engineered for diesel, gasoline, and gas engines. With 110kW power capacity and 175N·m torque measurement, it enables precise control of speed, torque, power, and fuel consumption, meeting rigorous performance and compliance testing requirements for automotive, marine, and power generation industries.
