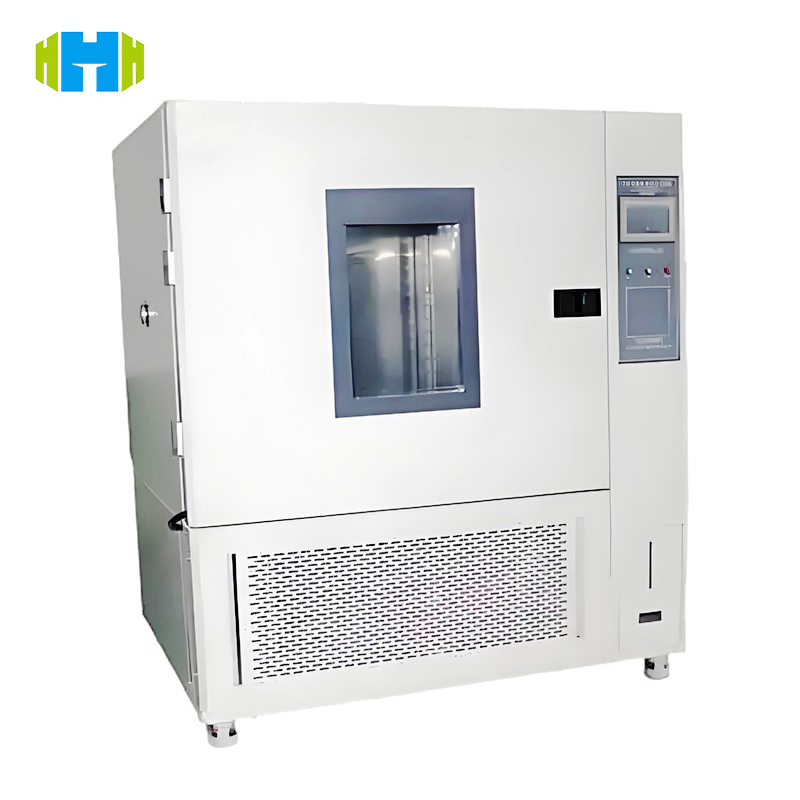

-70°C~150°C High Low Temperature Test Chamber Iec60068 Environmental Test Equipment

-70°C~150°C High Low Temperature Test Chamber Iec60068 Environmental Test Equipment

ET-001 High and Low Temperature Test Chamber is a precision environmental testing solution designed to simulate extreme temperature conditions (-70°C to 150°C) for rigorous product reliability evaluation. The chamber has a temperature stability of ±0.5°C and a uniformity of ±2°C, in compliance with IEC/ISO standards, serving the electronics, automotive, aerospace, and industrial sectors. It is ideal for testing temperature tolerance, material aging, and performance under stress, and provides actionable data to optimize product quality and market competitiveness.

  • Brand :

    ET-001
  • Model :

    hongce
  • Certificate :

    Calibration Certificate(Cost Additional)
  • Product Origin :

    china
  • Payment Method :

    L/C, T/T
  • Regular Packaging :

    Plywood

-70°C~150°C High Low Temperature Test Chamber Iec60068 Environmental Test Equipment



Product Introduction

Engineered for industrial durability and accuracy, the ET-001 enables controlled testing of products under extreme heat and cold. Its advanced refrigeration and heating systems ensure rapid temperature transitions (up to 5°C/min) and stable hold conditions, while a user-friendly touchscreen interface supports programmable test profiles. The chamber’s robust structure and safety features (overtemperature protection, leakage detection) make it suitable for both R&D labs and production line quality control.

Product Features

  1. Wide Temperature Range: -70°C to 150°C, covering polar cold to industrial heat scenarios.
  2. Precision Control: ±0.5°C stability and ±2°C uniformity for reliable, repeatable results.
  3. Rapid Transitions: 5°C/min linear heating/cooling rate to simulate real-world thermal shocks.
  4. Programmable Workflow: Customizable multi-segment temperature profiles via intuitive software.
  5. Safety Assurance: Emergency stop, overheat protection, and gas leakage monitoring.
  6. Energy Efficiency: Low-power standby mode and optimized compressor design reduce operational costs.
  7. Data Traceability: Auto-logging of temperature trends, exportable as CSV/PDF reports.
  8. Modular Design: Easy maintenance access and optional humidity extension (RH 20–98%).

International Reference Standards

  • Thermal Testing:
    • IEC 60068-2-1 (Low Temperature Test)
    • IEC 60068-2-2 (High Temperature Test)
  • Automotive Compliance:
    • ISO 16750-4 (Road Vehicle Electronics – Environmental Testing)
  • Industrial Safety:
    • IEC 61010-1 (Electrical Equipment for Measurement, Control, and Laboratory Use)

Product Uses

  • Electronics: Test PCBs, sensors, and components for temperature-induced failures.
  • Automotive: Validate ECUs, batteries, and powertrain parts against ISO 16750 standards.
  • Aerospace: Simulate high-altitude cold and engine compartment heat for avionics.
  • Industrial Equipment: Test motors, valves, and machinery for durability in harsh climates.
  • Consumer Goods: Ensure appliances and wearables withstand extreme storage/use conditions.

Technical Parameters

Test Item Parameter Specifications
Temperature Range -70°C ~ 150°C
Temperature Stability ±0.5°C At set point (25°C ~ 100°C)
Temperature Uniformity ±2°C In empty chamber (25°C ~ 100°C)
Heating Rate Up to 5°C/min (linear) From 25°C to 100°C
Cooling Rate Up to 5°C/min (linear) From 25°C to -40°C
Internal Volume 100L / 3.5 cu.ft (W×D×H: 600×500×350 mm)
Power Supply AC 220V/380V, 50/60Hz, 3-phase
Power Consumption 5–8 kW (peak)
Compressor Type Hermetic scroll (low noise)
Control System Microprocessor with 7” touchscreen Real-time trend display
Safety Features Overtemp alarm, phase loss protection
Humidity (Optional) 20–98% RH ±3% accuracy (when equipped)
Data Logging 12-month storage, USB export
Operating Altitude ≤2000 m
Noise Level ≤65 dB(A) At full load
Dimensions (Exterior) 1200×800×1500 mm L×W×H

Tested Objects

  • Electronics: Semiconductors, connectors, LED lights, wearable devices.
  • Automotive Parts: Sensors, batteries, switches, infotainment systems.
  • Aerospace Components: Actuators, flight control modules, thermal interface materials.
  • Industrial Products: Motors, pumps, control panels, solar inverters.
  • Packaging Materials: Plastics, adhesives, and seals for temperature resistance.

Detectable Items

  1. Thermal Performance:
    • Temperature tolerance (max/min operational limits).
    • Thermal expansion/contraction of materials.
  2. Reliability:
    • Component failure rates under sustained heat/cold.
    • Condensation/ice formation risks.
  3. Material Aging:
    • Cracking, warping, or degradation of plastics/metals.
  4. Functional Testing:
    • Performance stability of moving parts (e.g., motors, valves).
    • Electrical conductivity changes in PCBs.
