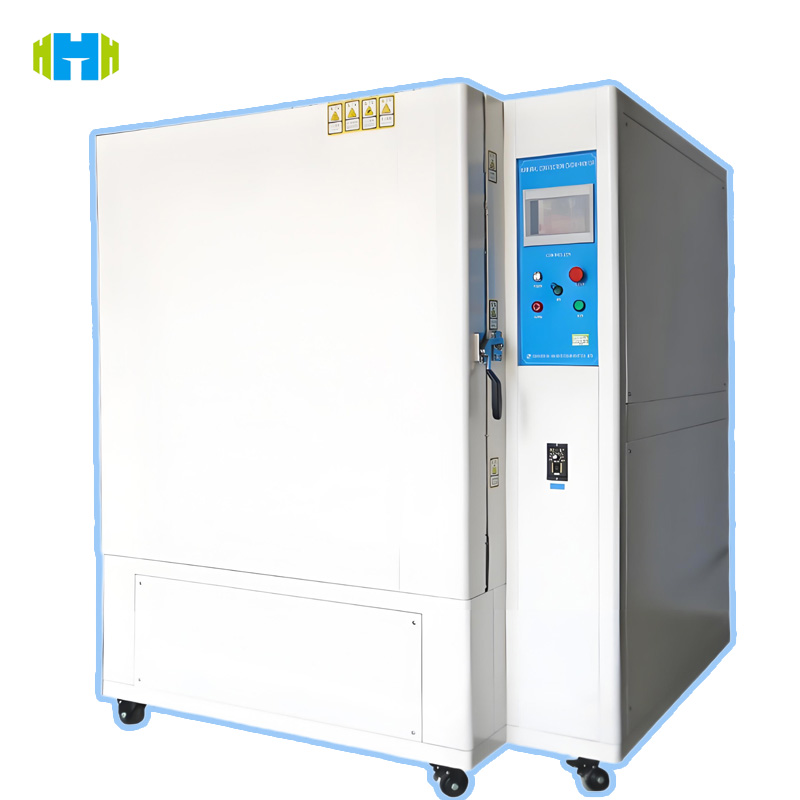

Natural ventilation aging test chamber HH0812A 20~300℃ temperature control Wire and cable/plastic and rubber heat resistance test

Natural ventilation aging test chamber HH0812A 20~300℃ temperature control Wire and cable/plastic and rubber heat resistance test

The natural ventilation aging test chamber uses natural ventilation technology and an intelligent temperature control system to accurately simulate the material aging process in a high temperature environment, ensuring that the test results meet international standards.

  • Brand :

    HONGCE
  • Model :

    HH0812A
  • Certificate :

    Calibration certificate(cost additional)
  • Product Origin :

    China
  • Payment Method :

    L/C, T/T
  • Regular Packaging :

    Plywood

Natural ventilation aging test chamber HH0812A 20~300℃ temperature control Wire and cable/plastic and rubber heat resistance test



Product introduction:

Natural ventilation aging test chamber HH0812A is a perfect combination of technology and craftsmanship. From the appearance, it adopts a simple and elegant design with smooth lines. The body is made of high-quality steel and the surface is finely sprayed. It is not only beautiful and durable, but also effectively resists the erosion of the external environment. The double-circulation air duct system allows the air to circulate evenly in the chamber, ensuring that the temperature and humidity are consistent everywhere, providing a stable environment for the test samples. The equipment is equipped with an intelligent control system with an intuitive and friendly operation interface, allowing you to easily set and monitor various test parameters.



Product Features:

1. Precise temperature control: PID intelligent calculation technology, temperature fluctuation ≤ ± 0.5 ℃, uniformity ≤ ± 1 ℃.

2. Natural ventilation system: built-in adjustable ventilation outlet, ventilation volume 8-20 times/hour adjustable, simulating real aging environment.

3. Safe and reliable: over-temperature power off, leakage double protection, silicone door seal to ensure long-term sealing.

4. High efficiency and energy saving: heater: spiral tube heater, power: 3.2kw; with two-stage heating selection mode

5. Humanized operation: dual-screen digital display, 999-hour timing function.

6. Multi-function compatibility: optional thermal extension device, ball pressure test accessories to meet diverse testing needs.



International reference standards:

GB/T 2951.12-2008: General test methods for cable insulation and sheathing materials

IEC 60811-1-2:1985: Thermal aging tests for insulation and sheathing of cables and optical cables

ISO 188:2011: Thermal aging tests for vulcanized rubber

ASTM D3045-92: Standard practice for thermal aging of plastics

JIS C 3005:2014: Specification for thermal extension tests on wires and cables



Technical parameters:

No. Project Parameters
1 Inner size 1000*1000*1000mm
2 Electric heating power 5.5KW, with two-stage heating selection mode
3 Intelligent PID control, with self-tuning function, instrument accuracy: 0.1 ℃
4 Temperature uniformity <2℃
5 Max temperature RT+20℃~300℃
6 Sample rotation speed 5~10r.p.m
7 Rotary motor power 1/4HP
8 Stainless steel inner wall and outer chamber are cold-rolled and sprayed
9 Double-layer stainless steel compartment, single-layer stainless steel round turntable
10 Natural ventilation rate 8~20 times/hour
11 With ultra-high temperature protection function, it can effectively protect the safety of equipment



Product use:

Industry applications: wires and cables, optical cables, rubber products, plastic films, insulation materials, automotive parts.

Test objects: PVC sheath, silicone rubber test piece, heat shrink tube, dumbbell-shaped test piece, cable sheath particles.

Test items: thermal elongation, shrinkage, change in tensile strength, yellowing resistance, residual deformation, hardness change.



Detail pictures:

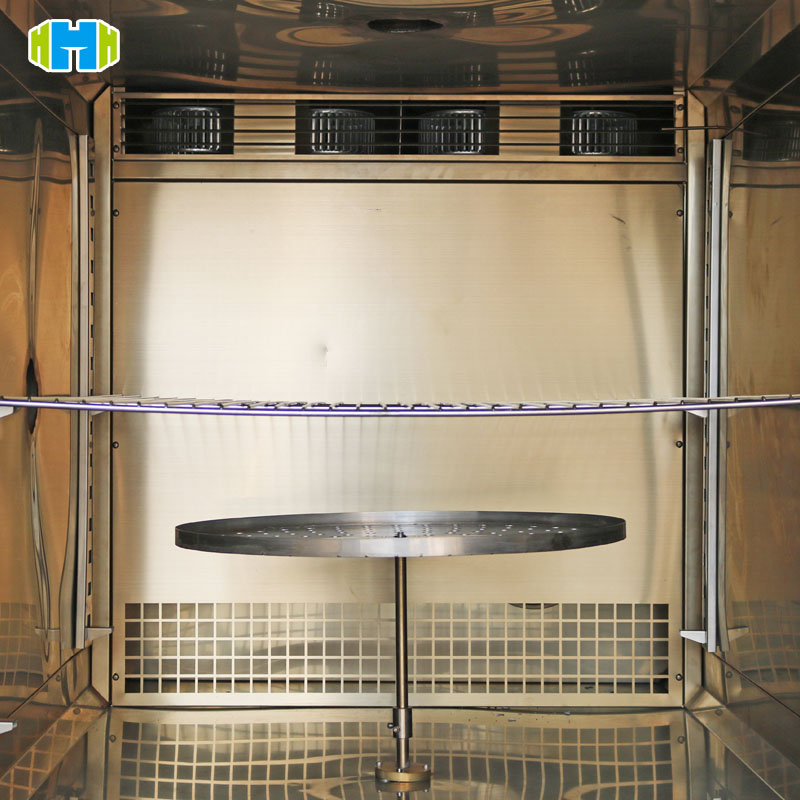

Internal structure of aging chamber
