ISO 9227Salt Spray Test Chamber 500L Capacity Environmental Test Equipment

ISO 9227Salt Spray Test Chamber 500L Capacity Environmental Test Equipment

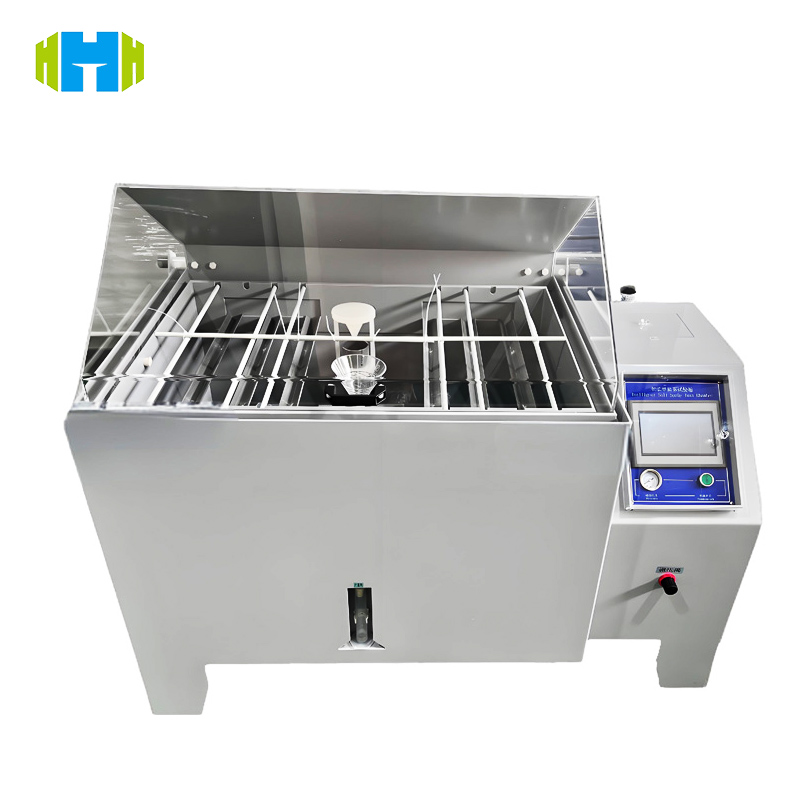

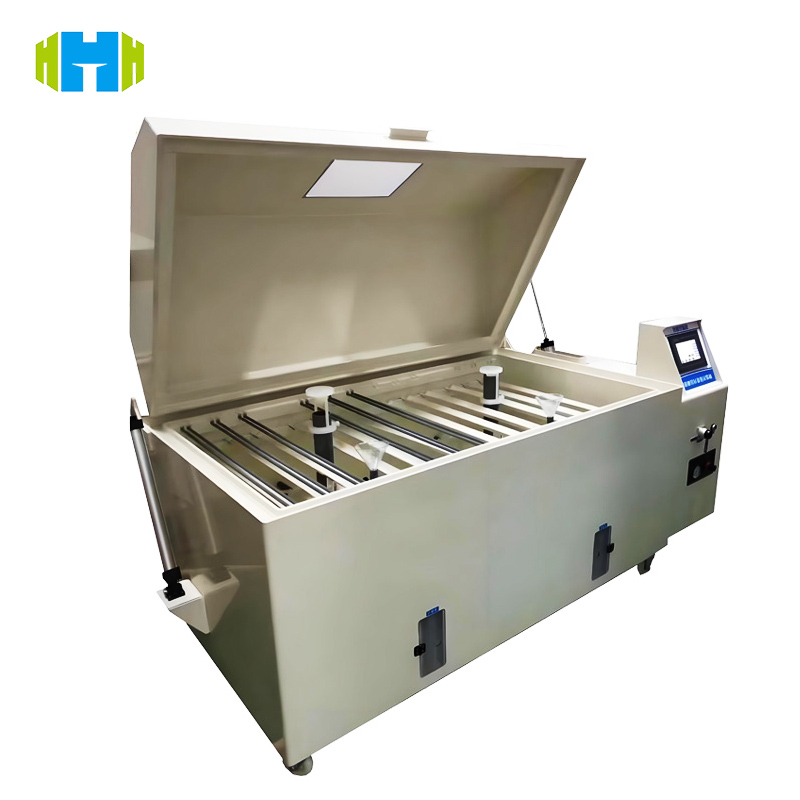

The ET-003 Salt Spray Test Chamber is a precision environmental testing solution designed to simulate corrosive environments, such as marine and industrial atmospheres, for accelerated corrosion resistance testing. With a 500L chamber capacity and compliance with ISO 9227 and ASTM B117 standards, this equipment evaluates material durability by exposing specimens to controlled salt mist conditions. Ideal for automotive, aerospace, electronics, and metal processing industries, it delivers actionable data to optimize coating, plating, and material selection for long-term corrosion protection.

  • Brand :

    hongce
  • Model :

    ET-003
  • Certificate :

    Calibration Certificate(Cost Additional)
  • Product Origin :

    CHINA
  • Payment Method :

    L/C, T/T
  • Regular Packaging :

    Plywood

ISO 9227Salt Spray Test Chamber 500L Capacity Environmental Test Equipment



Product Introduction

Engineered for industrial reliability, the ET-003 creates a harsh salt spray environment using atomized 5% NaCl solution (adjustable pH 6.5–7.2) at a controlled temperature (RT~55°C). Its automated control system regulates spray rate (1–2mL/80cm²/h), pressure (0.8–1.2bar), and test duration (up to 1000 hours), ensuring repeatable results for quality control and R&D. The chamber’s corrosion-resistant PVC interior and transparent observation window enable safe, real-time monitoring without disrupting test conditions.


Product Features

  1. Large Testing Capacity: 500L interior accommodates diverse specimen sizes (e.g., automotive parts, industrial components).
  2. Precision Control:
    • Temperature: RT~55°C (±1°C stability)
    • Salt mist concentration: 5% NaCl (±0.5% accuracy)
    • pH regulation: 6.5–7.2 (±0.1)
  3. Automated Workflow: Programmable timer (1–1000h), auto-mist activation, and data logging for unattended testing.
  4. Corrosion-Resistant Design: PVC chamber body, PP spray nozzles, and stainless steel specimen racks prevent cross-contamination.
  5. Safety & Efficiency: Overheat protection, leak detection, and low-power standby mode (≤2kW idle).
  6. Easy Maintenance: Detachable spray tower, drain valve, and modular filter system for quick cleaning.



International Reference Standards

  • Corrosion Testing:
    • ISO 9227 (Salt Spray Tests – Neutral Salt Spray (NSS) Test)
    • ASTM B117 (Standard Practice for Operating Salt Spray (Fog) Apparatus)
  • Material Evaluation:
    • ISO 12944 (Paints and Varnishes – Corrosion Protection of Steel Structures)
    • GB/T 10125 (Artificial Atmosphere Corrosion Tests – Salt Spray Tests)



Product Uses

  • Automotive: Test car bodies, fasteners, and electronic components for rust resistance.
  • Aerospace: Evaluate aircraft alloys, coatings, and seals against atmospheric corrosion.
  • Electronics: Validate PCB coatings, connectors, and enclosures in humid-corrosive environments.
  • Metal Processing: Optimize plating (zinc, nickel), powder coating, and anodizing durability.
  • Marine Equipment: Ensure offshore components withstand saltwater exposure.s



Technical Parameters

Item Parameters Illustrate
Chamber Volume 500L Internal size: 1200×900×450 mm
Temperature Range Ambient (RT) ~ 55°C ±1°C stability
Salt Solution 5% NaCl (w/v) Adjustable concentration (3–10%)
Spray Rate 1–2 mL/80cm²/h (24h average) ±0.5 mL variation
pH Value 6.5–7.2 ±0.1 accuracy
Air Pressure 0.8–1.2 bar For mist atomization
Test Duration 1–1000 hours Programmable in 1-minute increments
Specimen Holders Stainless steel (angle-adjustable) Max load: 50kg
Observation Window 300×200 mm (tempered glass) Anti-fog coating
Power Supply AC 220V/50Hz, 1-phase 3.5 kW (peak)
Humidity Control Auto-maintained (via temperature)
Safety Features Overheat alarm, pressure relief valve
Data Logging Auto-record temperature/mist density USB export (CSV format)
Noise Level ≤60 dB(A) During operation
Solution Refill Capacity 20L built-in tank
Dimensions (Exterior) 1500×1200×1600 mm L×W×H
