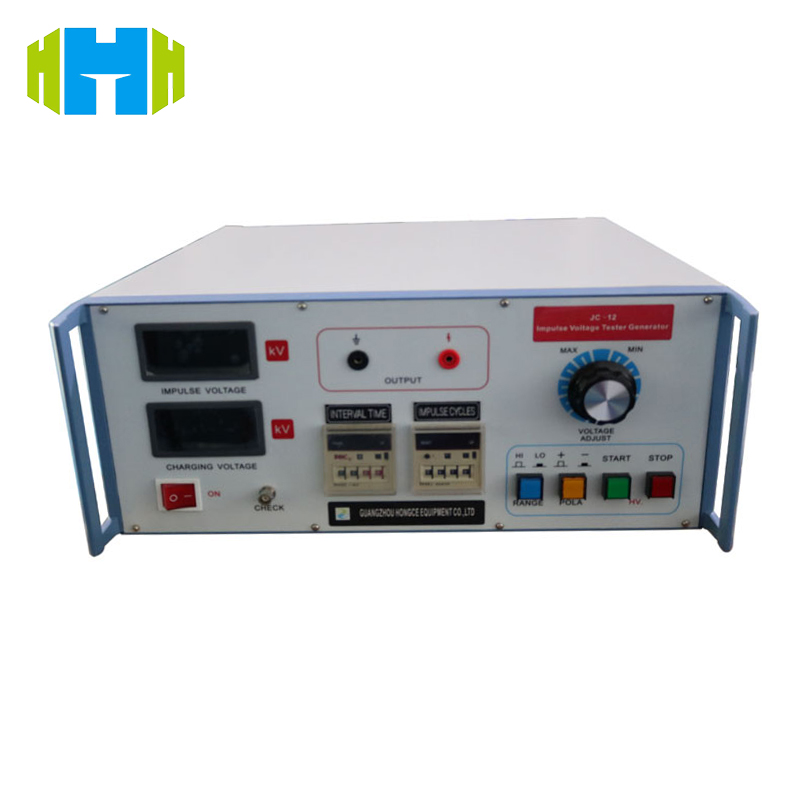

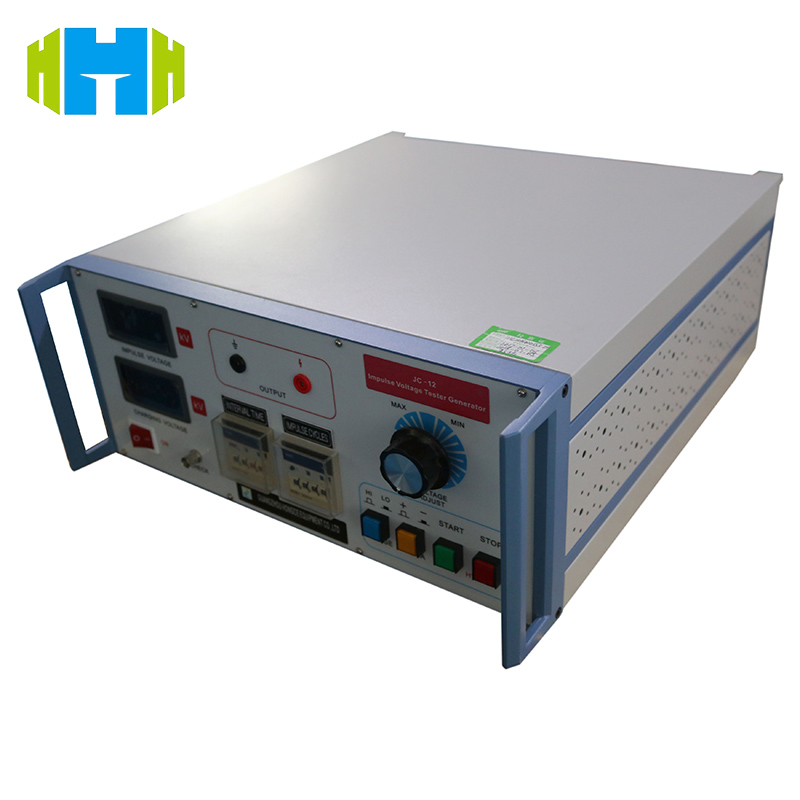

HJ0602 electrical impulse voltage tester, with an output voltage of up to 12kV (±5%), accurately generates 1.2/50μs standard impulse waveform (wavefront time 1.2μs±30%, half-wave time 50μs±20%), complies with IEC 60335-1 Clause 14 standard, has built-in overvoltage and overcurrent protection, and can automatically or manually detect transient overvoltage, electrical clearance and creepage distance of household appliance components. It is widely used in household electrical safety performance testing.
Brand :
hejinModel :
HJ0602Product Origin :
ChinaPayment Method :
T/T, L/CRegular Packaging :
PlywoodIEC60255-5 Household Impulse Voltage Tester Output Voltage Of 12kV (Max) ±5％
Application:
Impulse Voltage Tester HJ0602 is manufactured in accordance with the IEC60255-5 "Insulation Test of Electrical Relays" promulgated by the International Electrotechnical Commission (IEC), measuring the insulation coordination of relays and protective devices, and performing impulse voltage tests.
Feature:
7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software
Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current and short circuit protection
Output intelligent detection, voltage error, no output warning
Parameters:
| Output voltage | 12kV (Max) ±5％ | |
|
Impulse wavefront time:
|
1.2μs ±30％ | |
| Half value of after wave time | 50μs ±20％ | |
| Capacitance | 0.8U | |
| Output polarity | Positive, negative, positive and negative cycle | |
| Output resistance (optional) | 2Ω,500Ω±10％ | 12Ω,500Ω±10％ |
| Impact mode | Automatic or manual | |
| Impact cycles | 1-9999 | |
| Impact interval time | 3-999s(3s of which is the inherent charging time of the device) | |
| Power source | AC220±10％,50/60Hz | |
| Dimension | 470mm×260mm×500mm | |
| Weight | 30kg | |
Pulse generating unit equivalent circuit:
Output waveform definition Voltage wave
Leading edge time: T1=1.67T=1.2μs±30%
Half-peak time: T2=50μs±20%
