The HCWP300 water pump comprehensive performance test system integrates high-precision measurement, intelligent control and multi-functional testing. It can provide engineers with efficient and reliable testing solutions, helping companies improve product quality and reduce R&D costs.
Brand :
HONGCEModel :
HCWP300Certificate :
Calibration certificate(cost additional)Product Origin :
ChinaPayment Method :
L/C, T/TRegular Packaging :
PlywoodWater pump comprehensive performance test system High-precision detection Support intelligent data analysis
Product introduction:
HCWP300 water pump comprehensive performance test system is an intelligent testing equipment for the global market, suitable for performance evaluation of various water pumps such as submersible pumps, centrifugal pumps, screw pumps, chemical pumps, etc. The system collects key parameters such as flow, head, power, efficiency, etc. in real time, combined with dynamic curve visualization function, to help users quickly identify product performance bottlenecks. The equipment adopts a closed-loop structure design, supports automatic calibration and data storage, and ensures that the test results are accurate and reliable. Whether it is laboratory research and development or production line quality inspection, HCWP300 can become your "quality guardian" with excellent stability and flexibility.
International reference standards:
ISO 9906:2012 "Rotary pumps - Hydraulic performance acceptance tests - Level 1, 2 and 3"
Product use:
HCWP300 water pump comprehensive performance test system is widely used in water pump manufacturing enterprises, scientific research institutions, water conservancy projects, petrochemical industry, power industry, sewage treatment and other fields. In water pump manufacturing enterprises, it can be used for new product development testing, production process quality control and finished product acceptance testing; in scientific research institutions, it can be used for water pump performance research and new technology development; in water conservancy projects, petrochemical industry, power industry and sewage treatment and other fields, it can be used for water pump selection, commissioning and maintenance to ensure the efficient and reliable operation of water pumps in actual operation.
Technical parameters:
|
Basic parameter requirement |
medium | Clear water |
| Test pump type |
Centrifugal pump Mixed flow pump Axial flow pump Whirlpool pump Screw pump Well submersible pump Sewage submersible pump Small submersible pump Fire pump |
|
| Voltage(V) | 0-500V | |
| power(KW) | 200 | |
| Rotating speed(r/min) | 0-3000rpm | |
| Flow rate(M³/h) | 0-200M³/h | |
| Pump head(m) | 0-200m | |
|
System Requirements |
water circulatory system | open style |

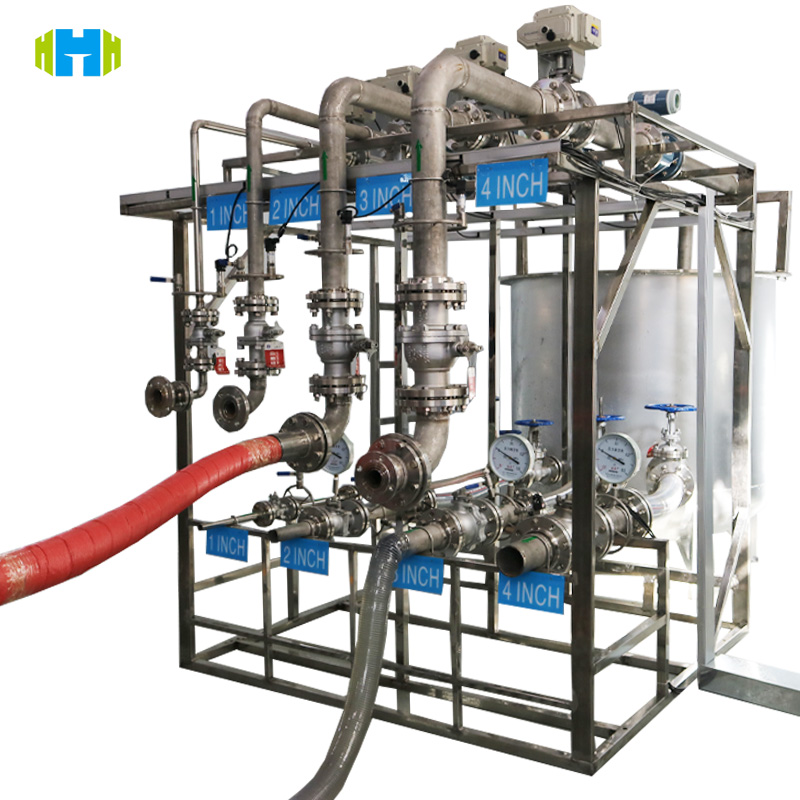

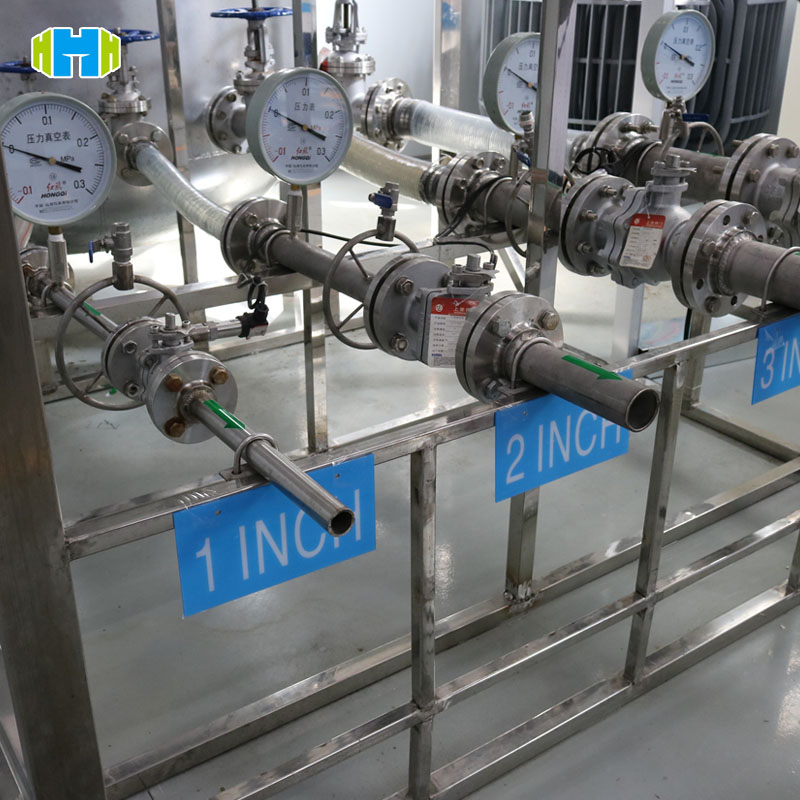

| Pipe diameter | 1 inch, 2 inch, 3 inch, 4 inch, total 4 lines | |
| Traffic regulation | Electric | |
| Shaft power flow method | Electrometry | |
| Test items | Flow rate, pump total head, speed of rotation, pump power input, cavitation test | |
| System accuracy | Level 2 / Level C | |
| Acquisition parameters | AC voltage, current, power, frequency, motor speed, inlet pressure, outlet pressure, flow, etc. | |
| Pump performance analysis and calculation of main parameters, curves | Head, flow, NPSH; flow at rated head, lift at rated flow, pump measured flow deviation, head deviation, pump efficiency deviation, and so on. | |
| Data Acquisition Analysis Mode | Computer automatic collection, analysis, printing, database management |
Test objects:
Centrifugal pumps: including single-stage centrifugal pumps, multi-stage centrifugal pumps, horizontal centrifugal pumps, vertical centrifugal pumps, etc.
Submersible pumps: such as deep well submersible pumps, sewage submersible pumps, clean water submersible pumps, etc.
Reciprocating pumps: piston pumps, plunger pumps, diaphragm pumps, etc.
Axial flow pumps: large axial flow pumps, small axial flow pumps, etc.
Mixed flow pumps: volute mixed flow pumps, guide vane mixed flow pumps, etc.
Other types of water pumps: such as gear pumps, screw pumps, vane pumps, etc.
What items can be tested?
Flow rate: measure the volume of liquid delivered by the pump per unit time.
Head: determine the height to which the pump can lift the liquid.
Power: including the detection of input power, output power and shaft power.
Efficiency: calculate the energy conversion efficiency of the pump.
Speed: measure the rotation speed of the pump impeller.
Vibration: detect the vibration amplitude and frequency of the pump during operation to evaluate the operating stability of the equipment.
Noise: measure the decibel of noise generated when the pump is running to determine whether it meets environmental protection requirements.
Temperature: monitor the temperature changes of various parts of the pump to prevent overheating and damage.
Pressure: detect the pressure value of the pump inlet and outlet to understand the working pressure state of the pump.
Cavitation margin: evaluate the anti-cavitation performance of the pump to ensure that the pump operates under normal conditions.
Sealing performance: check whether there is leakage in the sealing parts of the pump.
Starting performance: test the current, speed and other parameters when the pump starts to determine whether the start is normal.
Operation stability: observe the operating status of the pump under different working conditions to evaluate its stability and reliability.
Detail pictures:
