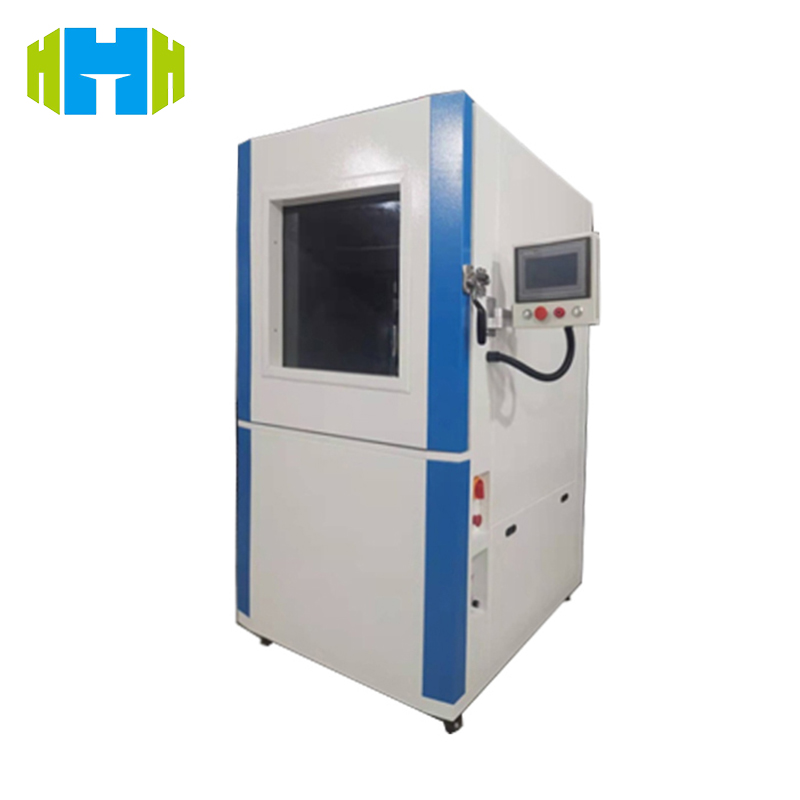

Dust Test Chamber 1800L Volume 500g/m³ Concentration ISO 16232 Certified Environmental Testing Equipment

Dust Test Chamber 1800L Volume 500g/m³ Concentration ISO 16232 Certified Environmental Testing Equipment

This equipment evaluates dust ingress resistance for electrical/electronic products, automotive/motorcycle components, and seals in simulated dusty environments. It assesses performance during use, storage, and transportation, identifying harmful effects from airborne particles. Simulating conditions like vehicle-induced dust storms, it serves as specialized Auto Parts Test Equipment to quantify dust penetration and optimize durability for harsh environments.

  • Brand :

    hongce
  • Model :

    AM0018
  • Certificate :

    Calibration Certificate(cost additional)
  • Product Origin :

    china
  • Payment Method :

    L/C, T/T
  • Regular Packaging :

    Plywood

Dust Test Chamber 1800L Volume 500g/m³ Concentration ISO 16232 Certified Environmental Testing Equipment



Product Introduction

Engineered for industrial durability, the AM0018 features a forced airflow circulation system (0.5–20m/s adjustable) and PLC-based intelligent control to replicate real-world dust storms induced by vehicle movement, construction, or desert conditions. Its modular design supports multi-segment testing cycles (e.g., 2-hour dust spray + 4-hour static exposure), while the anti-static chamber interior minimizes particle adhesion, ensuring accurate and repeatable results.


International Reference Standards

  • Automotive: ISO 16232-11 (Road Vehicles – Dust Test for Components).
  • IP Protection: IEC 60529 (IP6X Dust Ingress Testing).
  • General Environmental Testing:
    • GB/T 2423.37 (Chinese Standard for Dust Testing).
    • ASTM D7148 (Standard Practice for Dust Exposure Testing).



Technical Parameters



model AM0018-216 AM0018-512 AM0018-1000
Studio Size W * D * H 600×600×600mm 800×800×800mm 1000×1000×1000mm
Outer box size W * D * H 900×1200×1650mm 970×1300×1700mm 1400×1500×1900mm
Temperature range Rt+10℃~60℃
Fine dust 75um below
Thick dust 150um below
Airflow rate less-than 2m/s
Slide powder dosage 5kg/ m³
Dust concentration 2kg/m (adjustable)
Air metre A 1~20L / M digital display air flow meter
Metal mesh diameter 50um
Nominal spacing between lines 75um or below 150um
Air blower Full-plastic centrifugal fan
Vacuum gauge 0~-10KPa
Internal box material SUS 201 stainless steel mirror plate
Outer box material SUS201 or cold tie plate paint
Control system PLC Controller + Touch Screen Intelligent Control System (Siemens Brand)
vacuum system Pressure regulating valve, suction nozzle, pressure regulating three-piece set, connecting pipe, vacuum pump
Dust heating system Stainless steel mica sheet heating cover
Fundamental structure Composition of test box, vacuum suction outlet, circulating vacuum blowing device, vacuum pumping system, flow valve, heating system, protection drying net, etc
Controller control function Dust blowing time (stop, blow) h / m/s adjustable
Cycle cycle: any adjustable
Preset test time: 0s to 999 h99m99s is arbitrarily adjustable
Power supply mode: off-through-off
Equipment use conditions Power supply: 380V; Frequency: 50HZ; power: 3KW
Ambient condition Temperature of 15℃ ~35℃ The relative temperature of 25%~75%RH has an atmospheric pressure of 86 to 106 KPa
Safety protection system Line order protection, leakage protection, overtemperature protection, abnormal protection, instrument overtemperature protection
