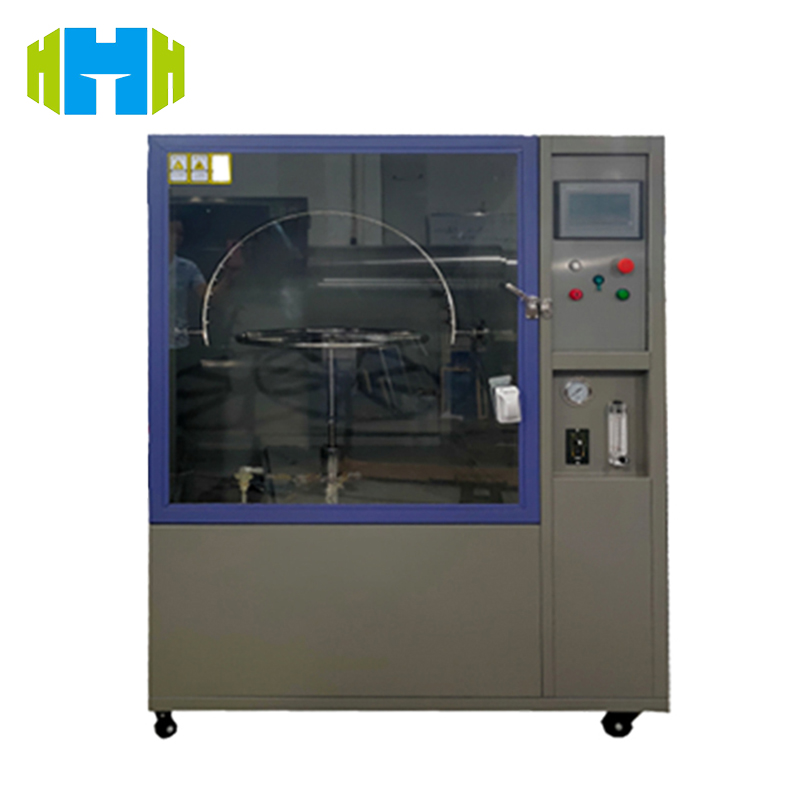

IEC 60529 ISO 20653 Auto Parts Test Equipment IPX 34 Rain Test Chamber

IEC 60529 ISO 20653 Auto Parts Test Equipment IPX 34 Rain Test Chamber

This rain test box is an equipment for the protection grade test of electrical equipment for shell protection.It is mainly used to assess and determine whether the shells and seals of various electrical appliances, electrical products and various lighting fixtures can ensure the good working performance of the equipment and components after the water test or during the test.It is also an essential testing equipment for scientific research institutions and quality testing institutions.widely used in lamps, electrician and electronics, automobile, motorcycle, home appliances, electromechanical and other industries.

  • Brand :

    hongce
  • Model :

    HCTE0039
  • Certificate :

    Calibration Certificate(cost additional)
  • Product Origin :

    china
  • Payment Method :

    L/C, T/T
  • Regular Packaging :

    Plywood

IEC 60529 ISO 20653 Auto Parts Test Equipment IPX 34 Rain Test Chamber



Meet a criterion:

GB4208-2017, IEC 60529:2013, ISO20653:2006, GB2423.38-2005, IEC60068-2-18:2000 etc.



Parameters:

model AM0021-IPX34-225 AM0021-IPX34-500 AM0021-IPX34-1000 AM0021-IPX34-1400
Internal Box Size W * D * H (mm) 600×600×600 800×800×800 1000×1000×1000 1400×1400×1400
Outer box dimensions W * D * H (mm) 900×1080×1650 1100×1480×1750 1200×1500×1950 1900×1600×2350
Pendulum radius (mm) 200 300 400 600
Turntable diameter (mm) 300 400 500 500
Power / power 220V/3KW 220V/3KW 220V/3KW 220V/4KW
Loadable weight (kg) 20
Adjustable height (mm) 100



qualification

Sample frame speed 1 ~3r/min (Adjustable)
Diameter of water spraying hole 0.4mm
Radial spacing of water spraying hole 50mm
Water spraying hole flow 0.07 L/min +5%
Rain water pressure 80~150Kpa
Range of spray pipe swing Angle 120 °, 320 ° (near)
Spray mouth clip Angle 120°(IPX3),180°(IPX4)
Swing Angle 120°(IPX3),320°(IPX4)
Pendulum swing control Maximum ± of 180 ° (near)
Water spraying pipe swing speed IPX3 15 times / min; IPX4 5 times / min
Preset test time 1 S ~ 9999 The H59M59S is arbitrarily adjustable
Internal box material S US304 stainless steel
Outer box material S US304 stainless steel or cold tie plate paint
Control system Siemens touchscreen control system
Ambient condition Temperature 5℃ ~40℃ and relative temperature 85%RH
Safety protection device Power overload / short circuit protection, ground protection, water shortage protection, alarm sound warning
