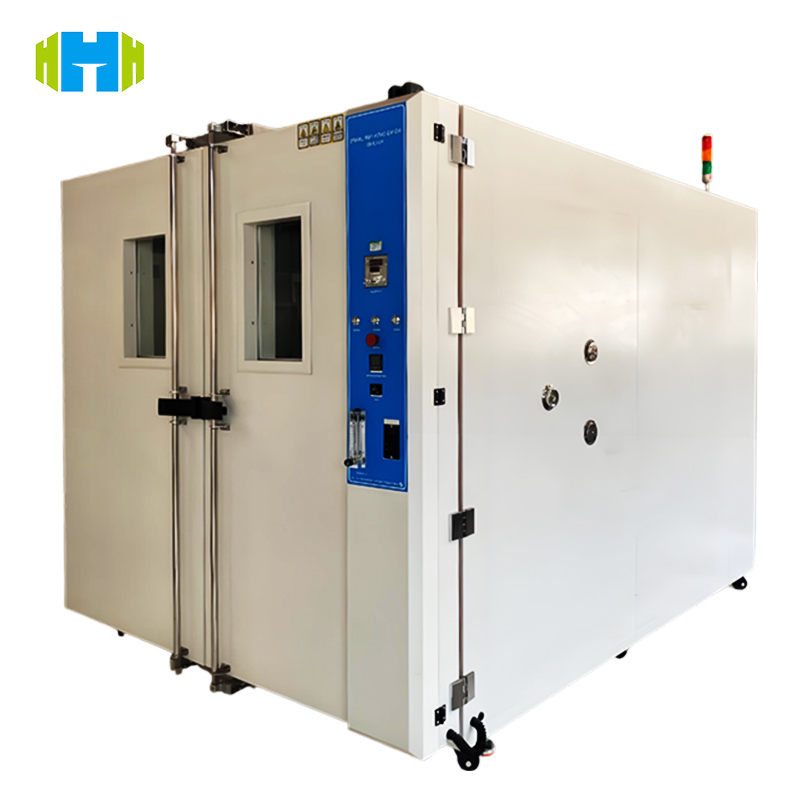

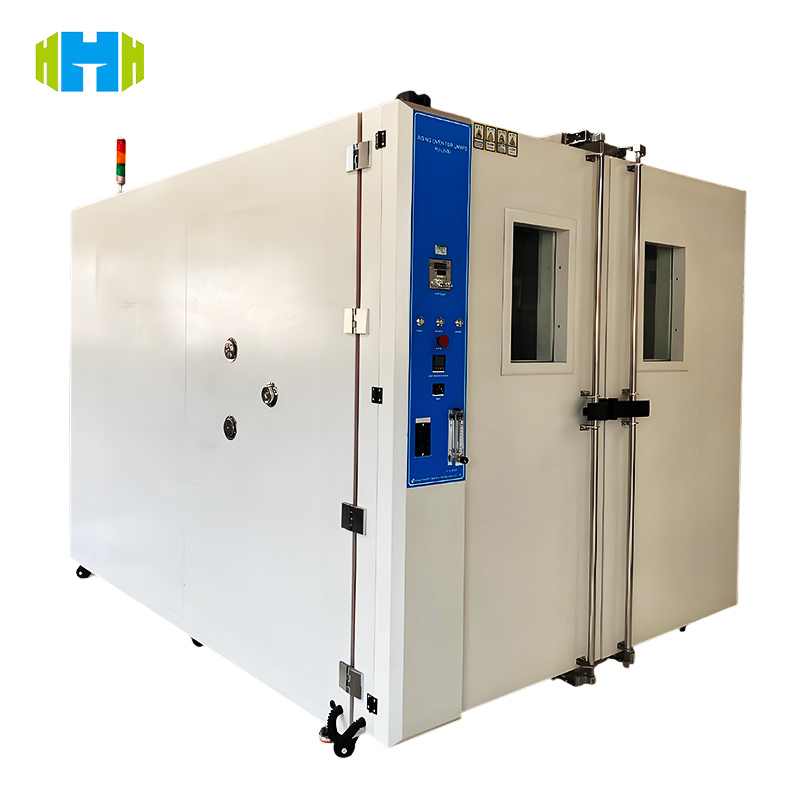

Large Lamp Aging Oven 300°C Max Temp 80m³ Capacity Environmental Test Equipment

Large Lamp Aging Oven 300°C Max Temp 80m³ Capacity Environmental Test Equipment

The HC-LH80 Large Lamp Aging Oven is a high-performance industrial solution designed to simulate prolonged high-temperature environments for accelerated aging testing of lighting products. With a 300°C maximum temperature and 80m³ chamber capacity, it complies with IEC 60598, GB 7000, and EN 60529 standards, ensuring reliable evaluation of lamp durability, thermal stability, and safety under extreme conditions. Ideal for LED manufacturers, automotive lighting suppliers, and industrial equipment testers.

  • Brand :

    hongce
  • Model :

    HC-LH80
  • Certificate :

    Calibration certificate(cost additional)
  • Product Origin :

    china
  • Payment Method :

    T/T, L/C
  • Regular Packaging :

    Plywood

Large Lamp Aging Oven 300°C Max Temp 80m³ Capacity Environmental Test Equipment



Product Introduction

Engineered for large-scale lighting production lines, the HC-LH80 delivers uniform heat distribution and precise temperature control to replicate real-world operational stresses on lamps. Its robust steel structure and forced air circulation system enable consistent testing of up to 500+ lamps per batch, while the intuitive PLC control system supports programmable aging cycles (e.g., 72-hour continuous heating at 250°C). The oven’s safety features, including overheat protection and automatic smoke detection, ensure compliance with global industrial safety regulations.

Product Features

  1. Wide Temperature Range: ~300°C (ambient to 300°C) with ±1°C stability for precise aging simulation.

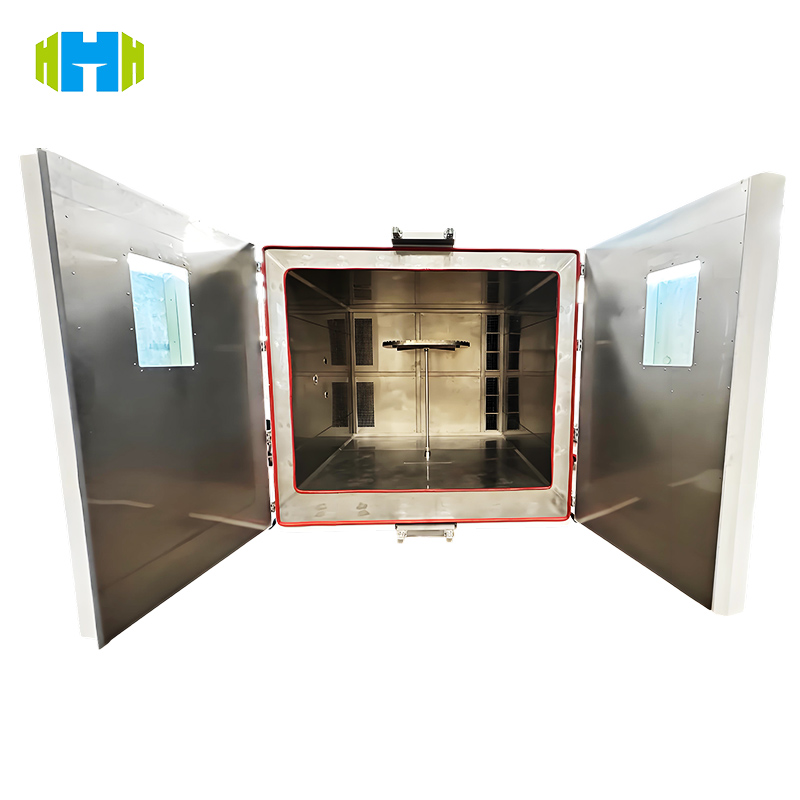

  2. Large Testing Capacity: 80m³ chamber (4000×5000×4000 mm) accommodates industrial lamps, streetlights, and automotive lighting modules.
  3. Uniform Heat Distribution: ±2°C temperature uniformity via dual-circulation fans and heat-resistant baffles.
  4. Programmable Workflow: Multi-segment cycle settings (e.g., ramp-up, hold, cool-down) with USB data logging.
  5. Energy Efficiency: Low-power standby mode (≤15kW idle) and insulated ceramic walls reduce energy consumption by 30%.
  6. Safety Compliance: CE-certified overheat alarms, emergency stop, and explosion-proof vents.
  7. Modular Design: Easy-to-clean interior, removable shelves, and optional humidity control (10–90%RH).
  8. Real-Time Monitoring: 10” touchscreen displays temperature trends, fault alerts, and remaining cycle time.

International Reference Standards

  • Lighting Safety:
    • IEC 60598-1 (Luminaires – Part 1: General Requirements and Tests)
    • GB 7000.1 (China National Standard for Luminaires Safety)
  • Environmental Testing:
    • EN 60529 (Ingress Protection – Thermal Endurance Testing)
    • IEC 61249-2-21 (Printed Boards – Thermal Stress Testing)

Product Uses

  • LED Lighting Manufacturers: Test LED panels, streetlights, and high-bay lights for lumen depreciation and color shift under heat.
  • Automotive Industry: Validate automotive headlights, taillights, and interior lighting for thermal stability during prolonged use.
  • Aerospace & Marine: Test explosion-proof lamps and navigation lights for compliance with extreme temperature standards.
  • Quality Labs: Conduct accelerated aging tests to shorten product development cycles and meet regulatory requirements.

Technical Parameters

Parameter Specification
Maximum Temperature 300°C (Stability: ±1°C)
Temperature Range Ambient +10°C ~ 300°C
Chamber Volume 80m³ (4000×5000×4000 mm, L×W×H)
Temperature Uniformity ±2°C (at 100°C~250°C)
Heating Rate 5°C/min (from ambient to 300°C)
Power Supply AC 380V, 50/60Hz, 3-phase (120kW peak)
Control System PLC with PID auto-tuning and 10” touchscreen
Safety Features Overheat cutoff (320°C), smoke detector, CE-certified
Shelf Loading Capacity 500kg per layer (3 adjustable layers)
Data Logging 2-year storage, CSV/PDF export via USB
Noise Level ≤75 dB(A) (at full load)
Insulation Material 100mm ceramic fiber (thermal conductivity ≤0.04W/mK)
Humidity Control (Optional) 10–90%RH (±5% accuracy)
Dimensions (Exterior) 5500×6000×5000 mm (L×W×H)
Weight 3500 kg
Compliance Marks CE, ISO 9001, GB/T 2423.2

Tested Objects

  • LED Luminaires: Panels, downlights, floodlights.
  • Automotive Lighting: Headlights, fog lights, LED taillights.
  • Industrial Lamps: High-pressure sodium lamps, metal halide lamps.
  • Specialized Lighting: Explosion-proof lamps, marine navigation lights.
  • Lighting Components: Drivers, heat sinks, PCBs.

Detectable Items

  1. Thermal Performance:
    • Lumen depreciation (lumen maintenance factor).
    • Color rendering index (CRI) shift over time.
  2. Structural Integrity:
    • Housing deformation, lens cracking, or adhesive failure.
    • Heat sink efficiency and thermal resistance.
  3. Electrical Safety:
    • Insulation breakdown, overcurrent protection response.
    • LED driver stability under sustained heat.
  4. Compliance Testing:
    • IEC 60598-1 thermal endurance tests (e.g., 1000-hour aging).
    • GB 7000.1 safety certification for lighting products.
